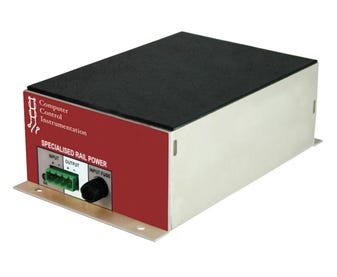

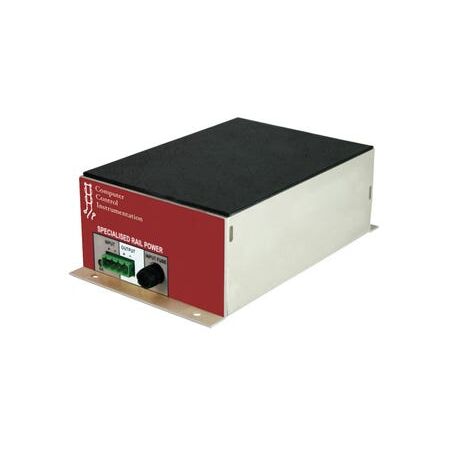

DC-DC Converter 400W 55-90V Input 24V 16A Output CCI

BRAND: CABAC
SKU: MR400E-24V-16A
$834.20 List price: $1,112.20
+ −
30 Days Return Electricians Unlock Trade Access
CCI DC-DC converter features 400W output, 55-90V DC input, and regulated 24V 16A output. Ideal for vehicle, rail and battery-fed equipment.

Alternatively Known As: CCI MR400E Rail Power Supply, 72V to 24V DC-DC Converter, Locomotive DC-DC Converter

Technical Specifications
  • Model: MR400E-24V-16A
  • Rated Power: 400W
  • Nominal Input Voltage: 72V DC
  • Input Voltage Range: 55–90V DC
  • Minimum Start Voltage: Above 60V DC
  • Output Voltage: 24.1V DC nominal
  • Output Current: 16A
  • Output Regulation: Less than 1% at 60–90V DC input and 16A load
  • Input Protection: 10A input fuse
  • Output Protection: Internal electronic protection without an external fuse
  • Efficiency: Typically greater than 95% at full load
  • Isolation: Input-to-output 1kV minimum tested
  • Isolation: Input-to-ground 1kV minimum tested
  • Isolation: Output-to-ground 500V minimum tested
  • Ripple and Noise: Less than 100mV RMS
  • Operating Temperature: 0°C to 60°C
  • Cooling: Fanless, suitable for restricted airflow positions
  • Dimensions (H x L x W): 63mm x 184mm x 111mm
  • Weight: 0.95 kg
Key Features
  • Isolated DC input and output
  • Designed for 72V DC locomotive and rail power systems
  • Regulated 24V DC output at up to 16A
  • Fanless design with no ventilation ports required
  • Electronic current sensing for overload protection
  • Automatically cycles the output during overload and resumes operation after the fault is removed
  • Compact enclosure suitable for flexible mounting positions
  • Suitable for loads with high surge current requirements, including lamps and motors
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrical or rail-systems technician. Follow the manufacturer's wiring, fusing, polarity, earthing and mounting instructions, and isolate the battery or DC supply before installation.
Applications
  • Locomotive and rolling-stock auxiliary power systems
  • Rail communications and control equipment
  • Vehicle electrical systems
  • Battery-fed 24V equipment
  • Industrial mobile machinery
  • High-surge loads such as lamps and motors
Environmental Benefits
  • Typically greater than 95% efficiency at full load, reducing conversion losses and operating heat
  • Fanless construction reduces auxiliary power consumption, noise and mechanical failure points
  • No ventilation ports required, helping reduce dust ingress and extend service life
  • Robust isolated design can reduce premature replacement and associated electronic waste
Warranty Information

CCI states a two-year warranty for the original user against defects in materials and workmanship from the date of shipment, subject to its installation, operating and warranty conditions. Confirm applicability to this legacy MR rail-power model with the distributor.

Available Now

Available through CCI and authorised Australian distributors; current stock and lead time should be confirmed before ordering.
