DC Isolator 600V 32A | IP66 | Thermoplastic Casing by Matchmaster
DC isolator with 600V voltage and 32A current rating—ideal for solar photovoltaic systems. Built for outdoor durability, with user-friendly on/off switch and thermoplastic casing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

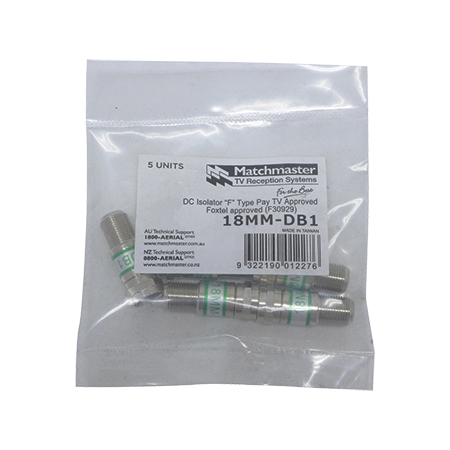

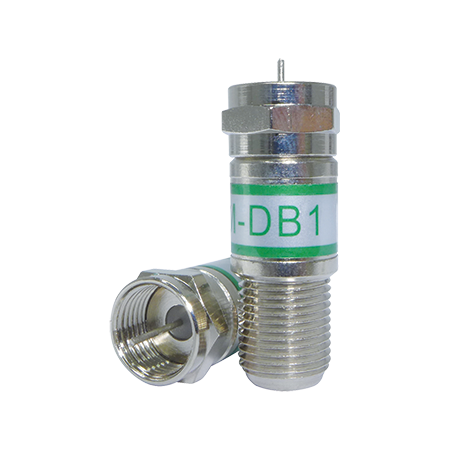

Product Name/Title: 'F' Type DC Isolator
Brand: Matchmaster
SKU: 18MM-DB1
Alternatively Known As: DC Voltage Isolator, RF DC Cut-off, Coaxial DC Isolator, Foxtel DC Isolator
Technical Specifications
- Frequency range: 5-3000 MHz
- Insertion loss: 0.2-0.5 dB
- Voltage cut-off: up to 50V DC
- Return loss: >20 dB
- Impedance: 75 Ohm
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- In-line DC cutter for 75 Ohm RF networks
- Passes frequency range of 5-3000 MHz
- Low insertion loss of 0.2-0.5 dB
- Cuts voltage up to 50V DC
- Return loss greater than 20 dB
- Foxtel approved (F10456)
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper integration within RF networks.
Applications
- Foxtel satellite networks
- RF coaxial networks requiring DC voltage isolation
- Active device power management in RF systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps prevent unnecessary power consumption by isolating DC voltage in RF networks
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 'F' Type DC Isolator is available now for immediate purchase. Ideal for use in Foxtel satellite and other RF coaxial networks requiring DC voltage isolation.
