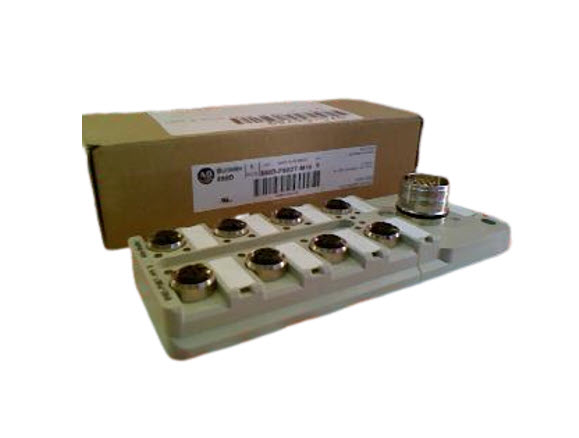

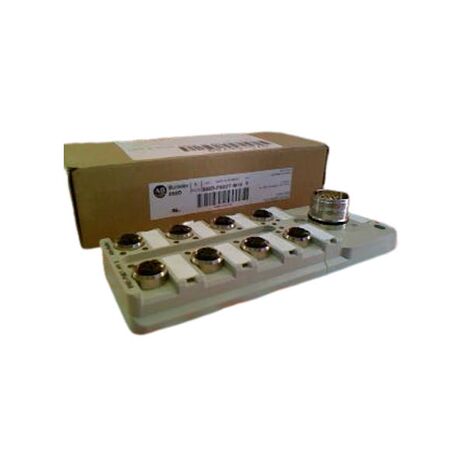

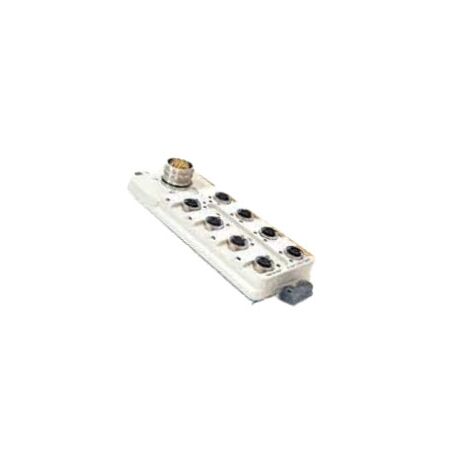

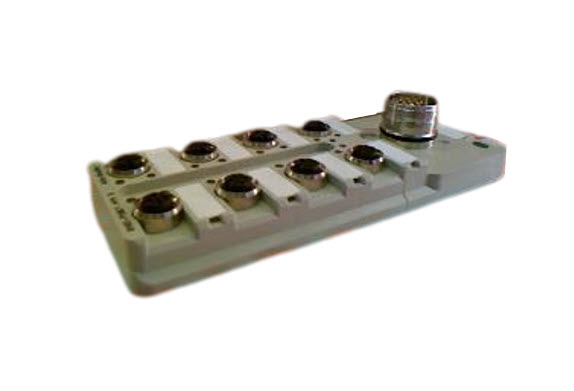

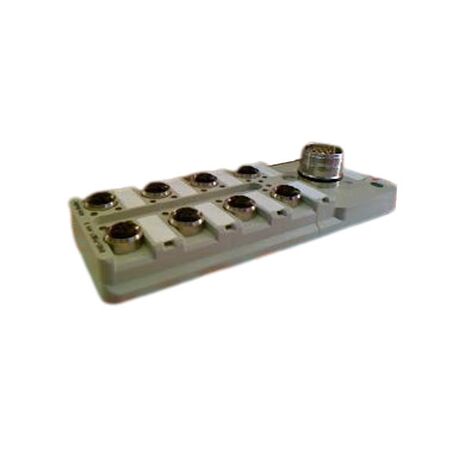

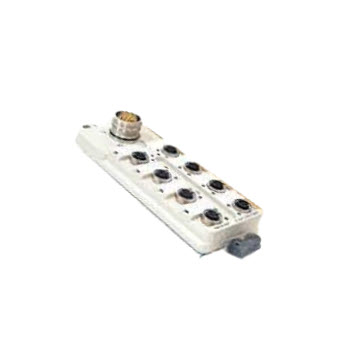

DC Micro QD Connection System | 5-Pin Configuration | 8 Ports with PNP LEDs | by Allen-Bradley
The DC Micro QD Connection System is designed for seamless integration in industrial automation, featuring a robust 5-pin configuration and 8 ports with parallel inputs. Ideal for manufacturing and production line connectivity, this system ensures reliable sensor connections with PNP LEDs for status indication, making it perfect for machine and equipment applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection Type: DC Micro QD (M12)
- Pin Count: 5 pins
- Ports: 8 ports with parallel 2 inputs per port
- LEDs: PNP type for status indication
- Connector: 19-pin M23 QD
- Ports Location: On top of the box
- Material: Standard industrial grade
- Dimensions (H x L x W): 50mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- DC Micro QD (M12) connection system
- Standard material construction
- PNP LEDs for status indication
- 5-pin configuration
- 8-port design with parallel 2 input per port
- Ports located on top of the box
- M23 quick disconnect (QD) interface
- 19-pin connector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Manufacturing and production line connectivity
- Machine and equipment sensor connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Efficient connection system minimizes energy loss
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 898DP58DTM19 DC Micro QD Connection System is available for immediate purchase, ideal for industrial automation and control system applications.
