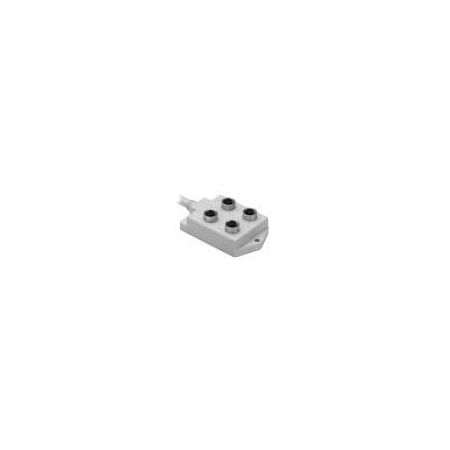

Product Name/Title: Allen-Bradley 898DP54DTM12 DC Micro QD Connection System
Brand: Allen-Bradley
SKU: 898DP54DTM12
Alternatively Known As: Allen-Bradley DC Micro QD Connector, 898DP54DTM12 Connection System, Allen-Bradley 4-Port Parallel Input Connector
Technical Specifications
- Connector Type: DC Micro Quick Disconnect (M12)
- Pin Count: 5 pins
- Port Count: 4 ports
- Input Configuration: Parallel - 2 inputs per port
- LED Indicators: PNP type
- Port Location: On top of the box
- Additional Connector: M23 Quick Disconnect
- Cable: Not included
- Dimensions (H x L x W): 50mm x 120mm x 100mm
- Weight: 0.3 kg
Key Features
- DC Micro Quick Disconnect (QD) with M12 connector
- Standard material construction
- PNP LED indicators for status
- 5-pin configuration
- 4-port design with parallel 2 input per port
- Ports located on top of the box
- M23 Quick Disconnect
- No cable included
Professional Installation Requirements
- Installation should be performed by a qualified electrician or automation technician to ensure proper connection and safety compliance.
Applications
- Industrial automation systems
- Factory assembly lines
- Machine control and monitoring
- Parallel input/output configurations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Efficient connection system minimizes energy loss
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 898DP54DTM12 DC Micro QD Connection System is available for immediate purchase, ideal for industrial automation and control system applications.
