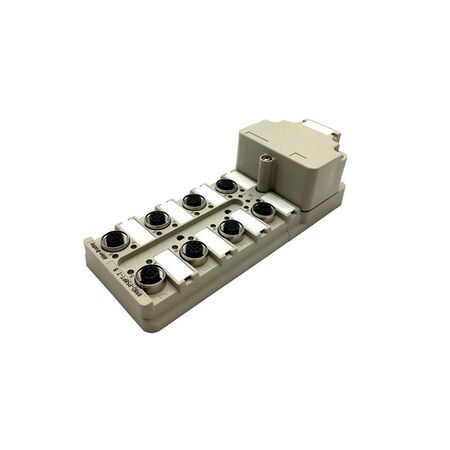

DC Micro QD Connection System | 8-Port Design | PNP LED Indicators | 5-Pin Configuration | by Allen-Bradley
The DC Micro QD Connection System is designed for seamless integration in industrial automation, featuring an 8-port design with a 5-pin configuration and PNP LED indicators for real-time status monitoring. Ideal for manufacturing process control and machine connectivity, this system ensures reliable signal distribution and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection Type: DC Micro QD (M12)
- Number of Pins: 5
- Number of Ports: 8
- Input Configuration: Parallel - 1 input per port
- LED Indicators: PNP type
- Port Location: On top of the box
- Includes Terminal Chamber
- No cable or pins included
- Dimensions (H x L x W): 50mm x 150mm x 120mm
- Weight: 0.3 kg
Key Features
- DC Micro QD (M12) connection system
- PNP LED indicators for status monitoring
- 5-pin configuration
- 8-port design with parallel 1 input per port
- Ports located on top of the box
- Includes terminal chamber for secure connections
- No cable or pins included
Professional Installation Requirements
- Installation should be performed by a qualified electrician or automation technician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Manufacturing process control
- Machine connectivity and signal distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Efficient connection system supports reliable industrial automation, reducing energy loss
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 898DP58PTT DC Micro QD Connection System is available now for immediate purchase. Ideal for industrial automation and control system applications.
