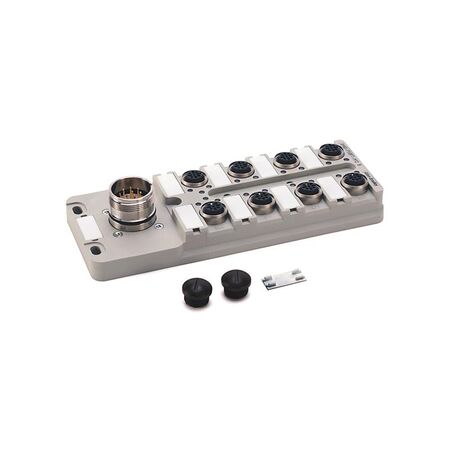

DC Micro QD Connection System | M12 Connector | 8 Ports with PNP LED Indicators | by Allen-Bradley
The DC Micro QD Connection System is designed for seamless integration in industrial automation, featuring an M12 connector and 8 ports with parallel input per port. Ideal for factory and manufacturing environments, this system includes PNP LED indicators for easy status monitoring, ensuring efficient and reliable connections for your control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection Type: DC Micro Quick Disconnect (M12)
- Pin Configuration: 5 pin and 12 pin
- Number of Ports: 8
- Input Type: Parallel 1 input per port
- LED Indicators: PNP type
- Port Location: On top of the box
- Cable: Not included
- Connector Type: M23 Quick Disconnect
- Dimensions (H x L x W): 50mm x 150mm x 120mm
- Weight: 0.3 kg
Key Features
- DC Micro Quick Disconnect (QD) with M12 connector
- Standard material construction
- PNP LED indicators for status
- 5 pin and 12 pin configurations
- 8 ports with parallel 1 input per port
- Ports located on top of the box
- M23 Quick Disconnect available
- No cable included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Factory and manufacturing environments
- Parallel input/output device connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient connection system supports energy-saving automation processes
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 898DP58PTM12 DC Micro QD Connection System is available for immediate purchase, ideal for industrial automation and control system applications.
