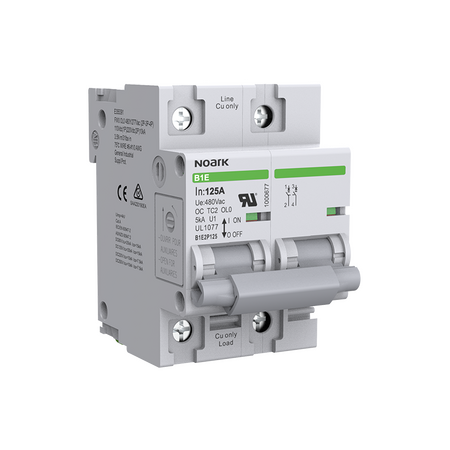

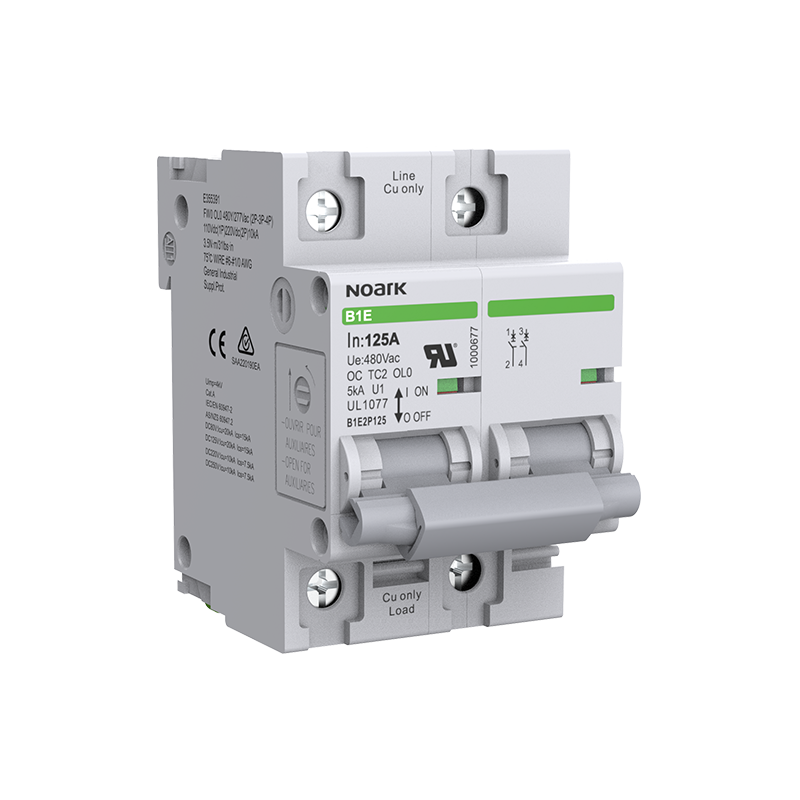

DC Miniature Circuit Breaker 125A | 110VDC & 250VDC | 20kA Breaking Capacity | 1P & 2P Configurations by Noark
DC miniature circuit breaker rated at 125A, designed for 110VDC (1P) and 250VDC (2P) applications—ideal for solar power and industrial DC systems. With a high breaking capacity of up to 20kA, it ensures reliable circuit protection and compliance with IEC 60947-2 and UL 1077 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: B1E2P80
Brand: Noark
SKU: 1000675
Alternatively Known As: DC Miniature Circuit Breaker, DC MCB 125A, Noark DC Circuit Breaker
Technical Specifications
- Rated Current: 125A
- Rated Operating Voltage: 110VDC (1P), 250VDC (2P)
- Breaking Capacity: Up to 20kA
- Pole Configuration: 1P & 2P
- Standards: IEC 60947-2, UL 1077
- Certifications: CE, UR, SAA
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.3 kg
Key Features
- Miniature Circuit Breakers up to 125A
- Tested according to IEC 60947-2 & UL 1077
- High rated breaking capacity up to 20kA
- Available in 1P & 2P configurations
- Rated operating voltage: 110VDC (1P); 250VDC (2P)
- Wide range of accessories
- Certifications: CE, UR, SAA
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper system integration.
Applications
- DC electrical systems requiring circuit protection
- Solar power installations
- Battery management systems
- Industrial DC power distribution
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports renewable energy systems such as solar power installations
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Noark DC MCB 125AB1E B1E2P80 is available for immediate purchase, ideal for DC power protection in solar and industrial applications.
