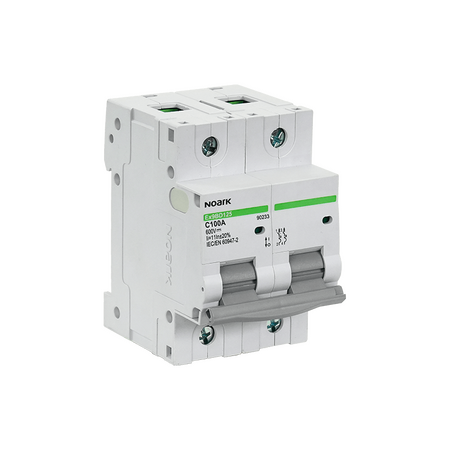

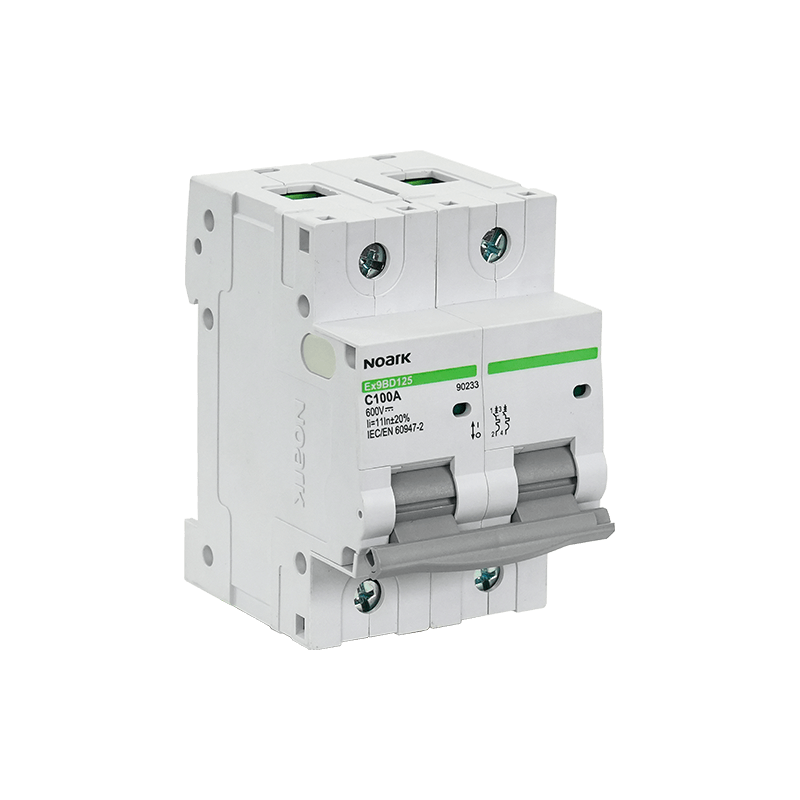

DC Miniature Circuit Breaker 2P | 600VDC | 100A Rated Current | High Breaking Capacity by Noark
DC Miniature Circuit Breaker designed for 600VDC applications, featuring a 100A rated current and high breaking capacity up to 10 kA. Ideal for solar power installations and industrial DC systems, it ensures reliable circuit protection and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9BD125 2P K80A DC600V IEC
Brand: Noark
SKU: 90274
Alternatively Known As: DC Miniature Circuit Breaker, DC MCB 600V, Noark DC Circuit Breaker
Technical Specifications
- Non-polarized connection
- 1P & 2P versions available
- High-rated breaking capacities up to 10 kA
- Rated current up to 100A
- Rated operating voltage: 300VDC (1P); 600VDC (2P)
- Dimensions (H x L x W): 85mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Non-polarized connection for flexible installation
- Available in 1P and 2P versions
- High-rated breaking capacities up to 10 kA
- Rated current up to 100A
- Rated operating voltage: 300VDC for 1P and 600VDC for 2P
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with DC electrical systems to ensure compliance and safety.
Applications
- DC electrical systems requiring circuit protection up to 600V DC
- Solar power installations
- Battery management systems
- Industrial DC power distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances safety and reliability of DC electrical systems, reducing risk of electrical faults and fires
- Supports renewable energy systems such as solar power installations
Warranty Information
Standard manufacturer warranty applies. Please refer to Noark official documentation for details.
Available Now
The Noark Ex9BD125 DC MCB is available for immediate purchase, ideal for DC power protection in solar and industrial applications.
