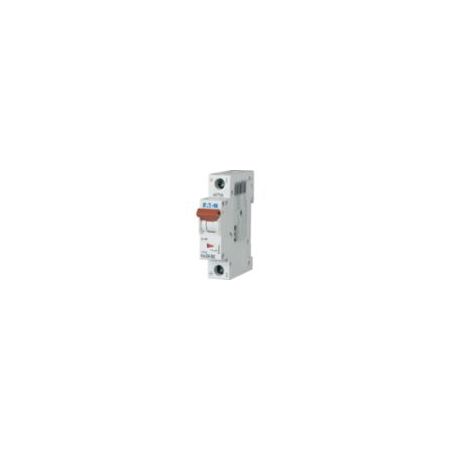

DC Miniature Circuit Breaker 4A Type C | 6 kA Switching Capacity | IP20 Protection | Eaton
The Eaton DC Miniature Circuit Breaker offers a rated current of 4 A and a 6 kA switching capacity, making it ideal for DC applications in industrial settings. Built for reliable electrical protection, it features a Type C tripping characteristic and operates efficiently in temperatures from -25 °C to 75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DC Miniature Circuit Breaker 4A Type C | 6 kA Switching Capacity | IP20 Protection | Eaton
Brand: Eaton
SKU: Y7-243118
Alternatively Known As: PLS6-DC MCB, Eaton DC Miniature Circuit Breaker, xPole PLS6-DC, 4A Type C DC Circuit Breaker
Technical Specifications
- Rated current (In): 4 A
- Tripping characteristic: Type C
- Rated switching capacity (IEC/EN 60947-2): 6 kA
- Voltage type: DC
- Rated operational voltage (Ue) max: 220 V
- Rated insulation voltage (Ui): 440 V
- Number of poles: Single-pole
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section (multi-wired and solid-core): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Power loss: 1.4 W
- Width in modular spacings: 1
- Rated impulse withstand voltage (Uimp): 4 kV
- Current limiting class: 3
- Dimensions (H x L x W): 73mm x 85mm x 17.5mm
- Weight: 0.12 kg
Key Features
- 1-pole miniature circuit breaker with Type C tripping characteristic
- Rated current: 4 A
- Rated switching capacity: 6 kA according to IEC/EN 60947-2
- Suitable for DC voltage applications
- Additional equipment possible
- Ambient operating temperature range: -25 °C to 75 °C
- Connectable conductor cross section: 1 mm² to 25 mm²
- Degree of protection: IP20
- Pollution degree: 2
- Power loss: 1.4 W
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into DC switchgear systems.
Applications
- Switchgear for DC applications
- Industrial electrical protection
- Panel building and electrical distribution systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Energy efficient with low power loss of 1.4 W
Warranty Information
Warranty terms as per Eaton standard product warranty policy.
Available Now
The Eaton Moeller series xPole PLS6-DC Miniature Circuit Breaker 4A Type C is available now for immediate purchase. Ideal for industrial and commercial DC electrical protection applications.
