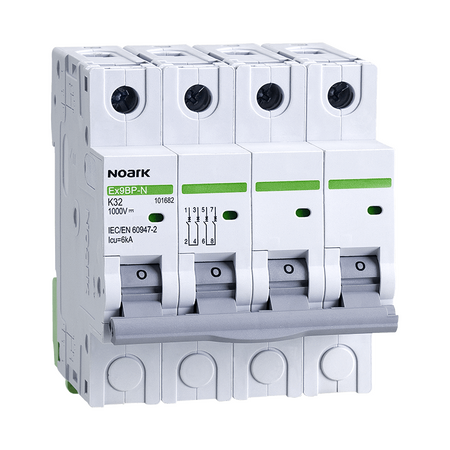

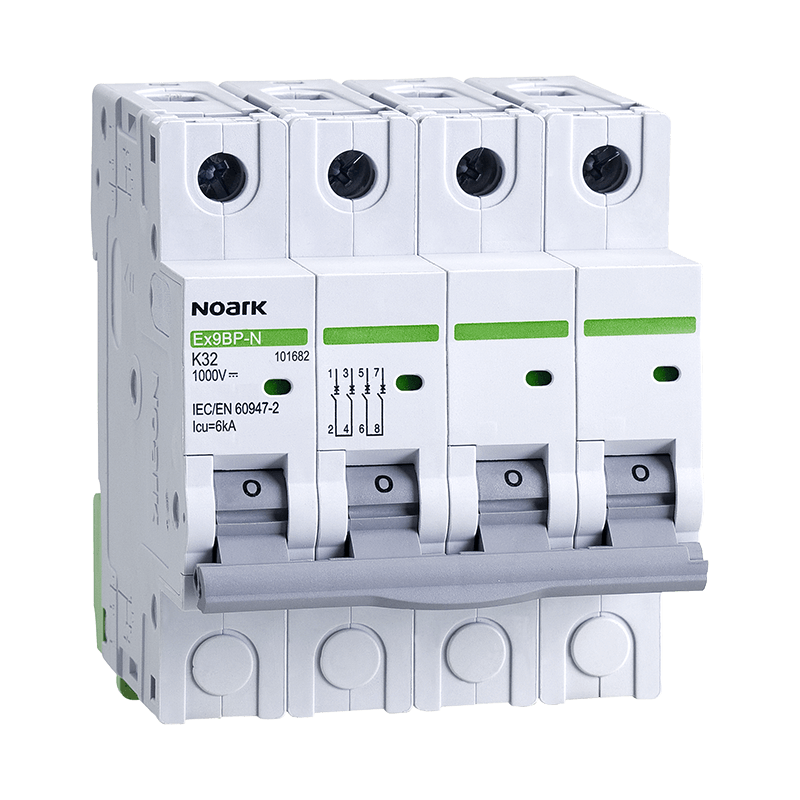

DC Miniature Circuit Breaker 4P | 1000V DC | 6kA Breaking Capacity | Non-Polarized Design by Noark

BRAND: Noark
SKU: 90130
$137.40 List price: $163.70
+
DC Miniature Circuit Breaker designed for photovoltaic applications, featuring a 1000V DC rating and 6kA short circuit breaking capacity. Ideal for renewable energy systems, it ensures reliable circuit protection with a non-polarized design and compliance with IEC/EN 60947-2 standards.

Product Name/Title: EX9BP 4P DC1000V K20 IEC

Brand: Noark

SKU: 90130

Alternatively Known As: DC Miniature Circuit Breaker, DC MCB 1000V, Photovoltaic DC Circuit Breaker

Technical Specifications
  • Non-polarized design
  • Tested to IEC/EN 60947-2
  • Short circuit breaking capacity Icu: 6 kA
  • Operating voltage Ue: 250 V DC per pole
  • Tripping characteristic: K
  • Rated current: up to 63A
  • Module width options: 2 and 4 modules
  • Dimensions (H x L x W): 85mm x 70mm x 72mm
  • Weight: 0.3 kg
Key Features
  • Non-polarized design suitable for photovoltaic applications
  • Tested according to IEC/EN 60947-2 standards
  • Rated short circuit breaking capacity Icu 6 kA
  • Rated operating voltage Ue of 250 V DC per pole
  • Available in widths of 2 and 4 modules
  • Tripping characteristics type K
  • Rated current up to 63A
  • Wide range of accessories available
Professional Installation Requirements
  • Installation must be performed by a qualified electrician experienced with DC electrical systems and photovoltaic installations.
Applications
  • Photovoltaic systems
  • DC electrical installations up to 1000V
  • Renewable energy systems requiring DC circuit protection
Standards & Compliance
  • AS/NZS 5033 – Installation of Photovoltaic (Solar) Systems
Environmental Benefits
  • Supports renewable energy systems by providing safe and reliable DC circuit protection
  • Enhances system longevity and reduces electrical faults, minimizing waste and environmental impact
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

The Noark EX9BP 4P DC MCB 1000V K20 IEC is available for immediate purchase, ideal for photovoltaic and DC electrical protection applications.
