DC Suppressor Module 110-250V | Varistor Protection | Screw Mount by Clipsal
DC suppressor module with 110-250V range and varistor protection—ideal for industrial DC control circuits. Built for reliable transient voltage protection, with easy screw mounting on TeSys Deca contactors.
Sign in
Please login to continue to your account.

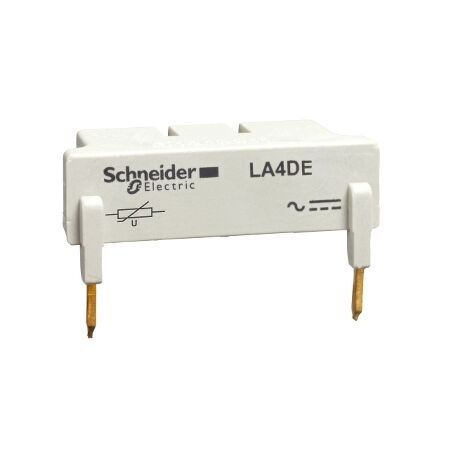

Product Name/Title: TeSys D, Suppressor Module, varistor, 110...250 V DC
Brand: Clipsal
SKU: LA4DE3U
Alternatively Known As: TeSys Deca Suppressor Module, Varistor Module, DC Suppressor
- Control circuit voltage: 110...250 V DC
- Maximum peak voltage: 2 Uc
- Mounting mode: by screws
- IP degree of protection: IP2X conforming to IEC 60529
- Ambient air temperature for operation: -25...55 °C
- Ambient air temperature for storage: -40...80 °C
- Dimensions (H x L x W): 29mm x 52mm x 43mm
- Weight: 0.018 kg
- Varistor protection limiting transient voltage to 2 Uc max.
- Mounting on top of contactor with screw fixing.
- Compatible with LC1D80-D95 (3P) and LP1D40-D80 (4P) contactors.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Used with TeSys Deca contactors for DC control circuits.
- Complies with IEC 60947-5-1 and other relevant standards.
- Green Premium compliant (RoHS/REACh).
18 months warranty.
The TeSys D Suppressor Module is available now for immediate purchase. Ideal for industrial applications requiring reliable transient voltage protection.
