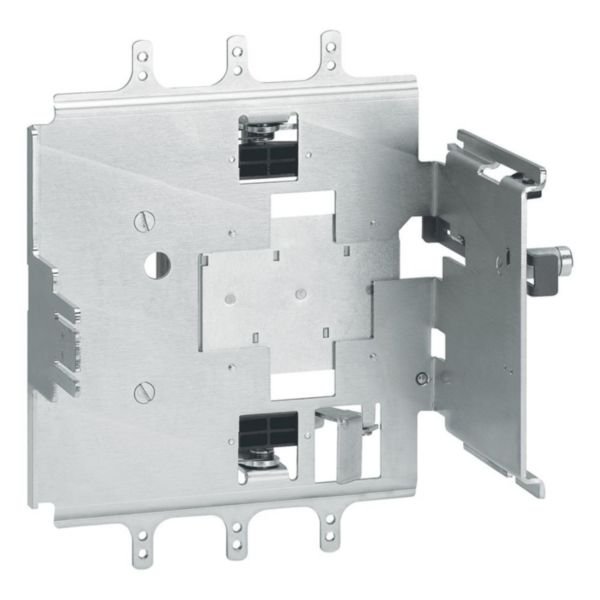

Debro-lift Mechanism 4P for DPX³ Base | Draw-out Accessory | Rigid Slide & Handle | by Legrand
The Debro-lift Mechanism 4P for DPX³ base is a specialized draw-out accessory designed for DPX³ 630 circuit breakers. It features a rigid slide and handle for easy withdrawal while maintaining the circuit breaker on its base. Ideal for electrical switchboards and modular installations, this mechanism enhances maintenance efficiency and reduces downtime, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Debro-lift Mechanism 4P for DPX³ Base | Draw-out Accessory | Rigid Slide & Handle | by Legrand
Brand: Legrand
SKU: 422232
Alternatively Known As: DPX3 Debro-lift mechanism, DPX³ 4P draw-out mechanism, Legrand DPX³ accessory
Technical Specifications
- Type: Draw-out accessory for DPX³ 630 circuit breakers
- Poles: 4P
- Includes rigid slide and handle for drawing out
- Compatible only with DPX³ base
- Mounting set type accessory
- Dimensions (H x L x W): 200mm x 300mm x 150mm
- Weight: 3 kg
Key Features
- Draw-out version mechanism for DPX³ 630 circuit breakers
- Allows withdrawal of DPX³ while keeping it on its base
- Equipped with a rigid slide and handle for easy drawing-out
- 4-pole configuration
- Specifically designed for DPX³ base only
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DPX³ systems to ensure safety and compliance.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers installation
- Industrial and commercial electrical distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Facilitates maintenance and replacement without full disconnection, reducing downtime and waste
- Durable design extends equipment lifespan
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Debro-lift Mechanism 4P for DPX³ base is available for immediate purchase, ideal for electrical switchboard maintenance and modular circuit breaker applications.
