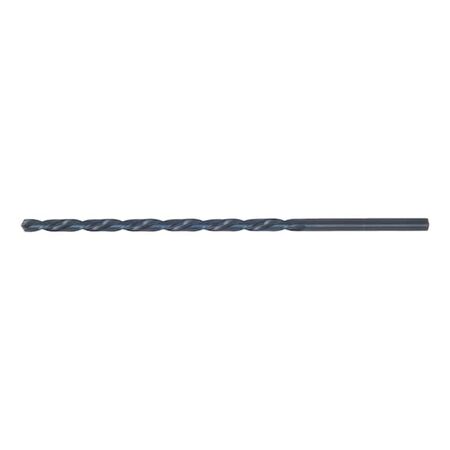

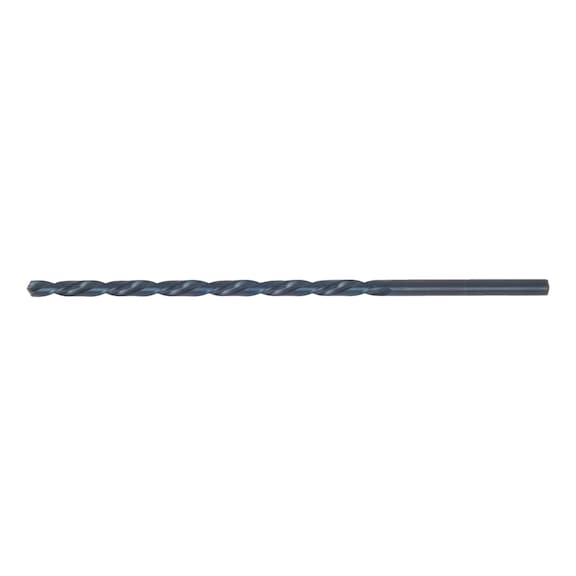

Deep Hole Drill Bit 3.5mm | Extra-Long HSS | Self-Centring Tip | Vaporised Finish | by Wurth
The 3.5mm Deep Hole Drill Bit is expertly crafted for precision drilling in steel and cast iron. With its extra-long design and self-centring tip at a 118° angle, it ensures accurate holes even in tough materials. Made from durable high-speed steel (HSS) with a vaporised surface finish, this drill bit is perfect for applications requiring deep drilling and complies with DIN 1869 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deep Hole Drill Bit 3.5mm | Extra-Long HSS | Self-Centring Tip | Vaporised Finish | by Wurth
Brand: Wurth
SKU: 625400350
Alternatively Known As: Deep hole drill bit, Long steel drill bit, HSS drill bit, Steel drilling bit 3.5mm
Technical Specifications
- Diameter: 3.5 mm
- Length: 165 mm
- Chip flute length: 115 mm
- Shank diameter: 3.5 mm
- Shank style: Cylindrical
- Cutting material: High-Speed Steel (HSS)
- Tip angle: 118 degrees
- Surface finish: Vaporised
- Standard drilling depth: 20xD according to DIN 1869
- Suitable for tensile strength up to 1000 N/mm²
- Self-centring tip
- Suitable for use with cordless screwdrivers, pedestal drilling machines, milling/drill centers, and drills
- Dimensions (H x L x W): 165mm x 165mm x 3.5mm
- Weight: 0.1 kg
Key Features
- Extra-long deep-hole drill bit designed for steel and cast iron
- High-speed steel (HSS) cutting material for durability
- Self-centring tip with 118° angle for precise drilling
- Vaporised surface for enhanced performance
- Suitable for tensile strength up to 1000 N/mm²
- Complies with DIN 1869 standard for drilling depth (20xD)
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained operators.
Applications
- Drilling deep holes in steel up to 1000 N/mm² tensile strength
- Suitable for cast iron and composite materials such as plastic profiles with steel core
- Use with cordless screwdrivers, pedestal drilling machines, milling/drill centers, and drills
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSS material reduces frequent replacements and waste
- Efficient drilling reduces energy consumption during machining
Warranty Information
Wurth standard quality assurance with warranty against manufacturing defects.
Available Now
The Wurth Extra-Long Steel Deep-Hole Drill Bit 3.5mm is available for immediate purchase, ideal for machining applications requiring deep, precise holes in steel and cast iron.
