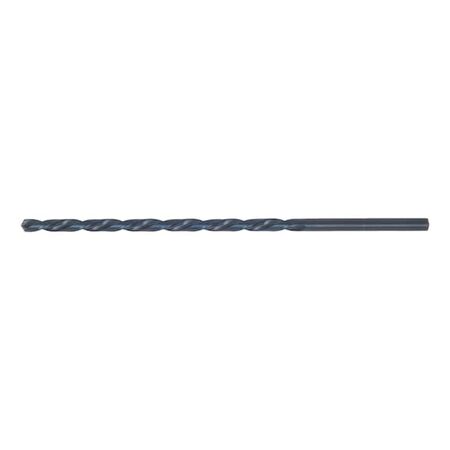

Deep Hole Drill Bit 5mm | Extra Long HSS | Self-Centring Tip | Vaporised Finish | by Wurth
The Deep Hole Drill Bit 5mm is expertly crafted for precision drilling in steel and cast iron, featuring a self-centring tip with a 118-degree angle for accuracy. Made from high-speed steel (HSS) with a vaporised surface, this extra-long drill bit is perfect for deep hole applications, ensuring durability and efficiency in professional machining tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deep Hole Drill Bit 5mm | Extra Long HSS | Self-Centring Tip | Vaporised Finish | by Wurth
Brand: Wurth
SKU: 625400500
Alternatively Known As: Deep Hole Drill Bit, Extra Long Drill Bit, HSS Drill Bit, Steel Drill Bit 5mm
Technical Specifications
- Diameter: 5.0 mm
- Length: 195 mm
- Chip flute length: 135 mm
- Shank diameter: 5.0 mm
- Shank style: Cylindrical
- Cutting material: High-Speed Steel (HSS)
- Tip angle: 118 degrees
- Surface finish: Vaporised
- Suitable for tensile strength up to 1000 N/mm²
- Standard / drilling depth: DIN 1869 / 20xD
- Self-centring: Yes
- Quality: Wurth-Standard
- Dimensions (H x L x W): 195mm x 195mm x 5mm
- Weight: 0.1 kg
Key Features
- Extra-long deep-hole drill bit designed for steel and cast iron
- High-speed steel (HSS) cutting material for durability
- Self-centring tip with 118-degree angle for precise drilling
- Vaporised surface for enhanced performance
- Suitable for a variety of materials including general structural steels, tool steels, brass, and plastics
Professional Installation Requirements
- Use with appropriate drilling machines and follow safety guidelines; professional handling recommended for optimal performance and safety.
Applications
- Drilling deep holes in steel up to 1000 N/mm² tensile strength
- Suitable for cast iron and composite materials such as plastic profiles with steel core
- Use with cordless screwdrivers, pedestal drilling machines, milling/drill centers, and drills
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable high-quality materials reduce the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during machining processes
Warranty Information
Wurth standard warranty applies; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Extra-Long Steel Deep-Hole Drill Bit 5.0mm is available for immediate purchase, ideal for professional machining and industrial drilling applications.
