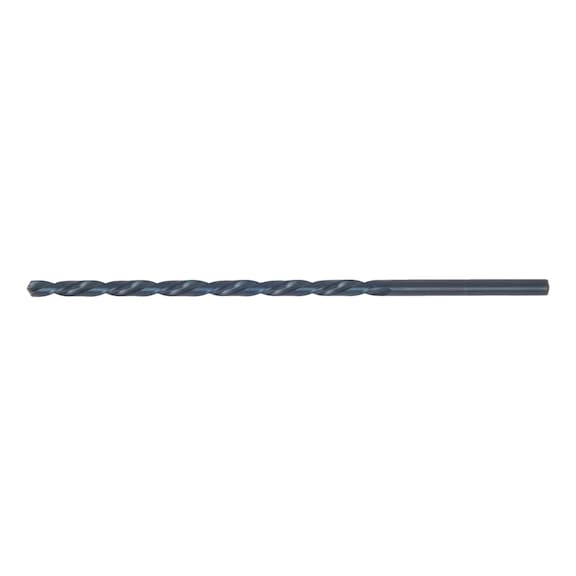

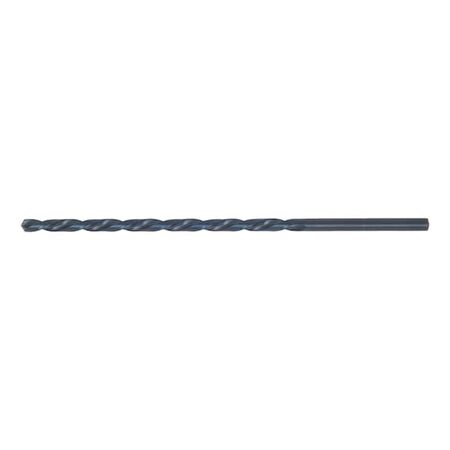

Deep Hole Drill Bit 6mm | Extra-Long HSS Steel | Self-Centring Tip | Vaporised Finish | by Wurth
The 6mm Deep Hole Drill Bit is expertly crafted for precision drilling in steel and cast iron. With its extra-long design and self-centring tip, it ensures accurate holes up to 1000 N/mm² tensile strength. Made from high-speed steel (HSS) with a vaporised finish, this drill bit is perfect for professional machining and industrial applications, providing durability and performance for various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 6.0 mm
- Length: 205 mm
- Chip flute length: 140 mm
- Shank diameter: 6.0 mm
- Shank style: Cylindrical
- Cutting material: High-Speed Steel (HSS)
- Tip angle: 118 degrees
- Surface finish: Vaporised
- Suitable for tensile strength up to 1000 N/mm²
- Self-centring tip
- Standard drilling depth: DIN 1869 / 20xD
- Dimensions (H x L x W): 6mm x 205mm x 6mm
- Weight: 0.1 kg
Key Features
- Extra-long deep-hole drill bit designed for steel and cast iron
- High-speed steel (HSS) cutting material for durability
- Self-centring tip with 118-degree angle for precise drilling
- Vaporised surface for enhanced performance
- Suitable for a variety of materials including general structural steels, tool steels, brass, and plastics
Professional Installation Requirements
- Use with appropriate drilling machines and follow safety guidelines for handling high-speed steel drill bits. Professional machining operators recommended for optimal results.
Applications
- Drilling deep holes in steel up to 1000 N/mm² tensile strength
- Suitable for cast iron and composite materials such as plastic profiles with steel core
- Use with cordless screwdrivers, pedestal drilling machines, milling/drill centers, and drills
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable high-quality materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
Wurth standard warranty applies, covering manufacturing defects.
Available Now
The Wurth extra-long steel deep-hole drill bit 6.0mm is available now for immediate purchase. Ideal for professional machining and industrial drilling applications.
