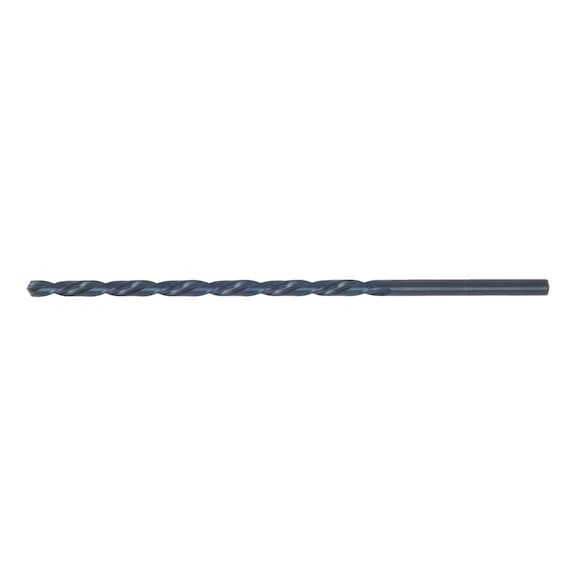

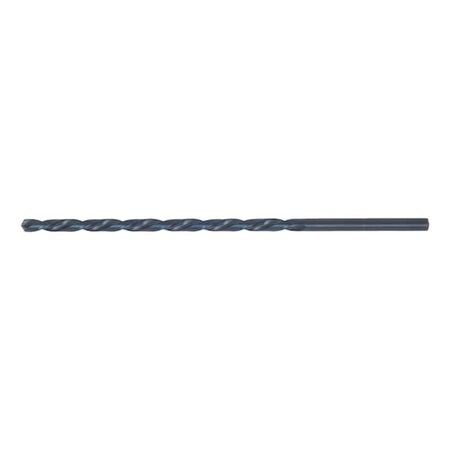

Deep Hole Drill Bit 7mm | Extra-Long HSS Design | Self-Centring Tip | Vaporised Finish | by Wurth
The 7mm Deep Hole Drill Bit is engineered for precision drilling in steel and cast iron, featuring a self-centring tip with a 118-degree angle for accuracy. Crafted from high-speed steel (HSS) with a vaporised surface, this drill bit is perfect for deep hole applications, ensuring durability and performance in professional machining and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deep Hole Drill Bit 7mm | Extra-Long HSS Design | Self-Centring Tip | Vaporised Finish | by Wurth
Brand: Wurth
SKU: 625400700
Alternatively Known As: Deep hole drill bit, Long steel drill bit, HSS deep hole drill, Steel drilling bit 7mm
Technical Specifications
- Diameter: 7.0 mm
- Length: 225 mm
- Chip flute length: 155 mm
- Shank diameter: 7.0 mm
- Shank style: Cylindrical
- Cutting material: High-Speed Steel (HSS)
- Tip angle: 118 degrees
- Surface finish: Vaporised
- Suitable for tensile strength up to 1000 N/mm²
- Standard drilling depth: DIN 1869 / 20xD
- Self-centring tip for accurate drilling
- Dimensions (H x L x W): 7mm x 225mm x 7mm
- Weight: 0.1 kg
Key Features
- Extra-long deep-hole drill bit designed for steel and cast iron
- Self-centring tip with 118-degree angle for precise drilling
- High-speed steel (HSS) cutting material for durability
- Vaporised surface for enhanced performance
- Suitable for a variety of materials including general structural steels, tool steels, brass, and plastics
Professional Installation Requirements
- Use with appropriate drilling machines and follow safety guidelines for handling high-speed steel drill bits.
Applications
- Drilling deep holes in steel up to 1000 N/mm² tensile strength
- Suitable for cast iron and composite materials such as plastic profiles with steel core
- Use with cordless screwdrivers, pedestal drilling machines, milling/drill centers, and drills
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable high-quality materials reduce the need for frequent replacements, minimizing waste
Warranty Information
Wurth standard warranty applies, covering manufacturing defects.
Available Now
The Wurth extra-long steel deep-hole drill bit 7mm is available for immediate purchase, ideal for professional machining and industrial drilling applications.
