Trade Discount 25%

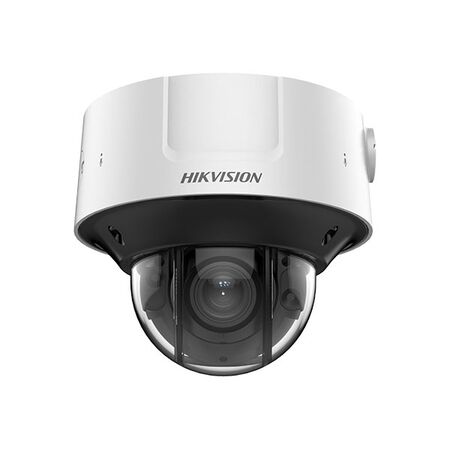

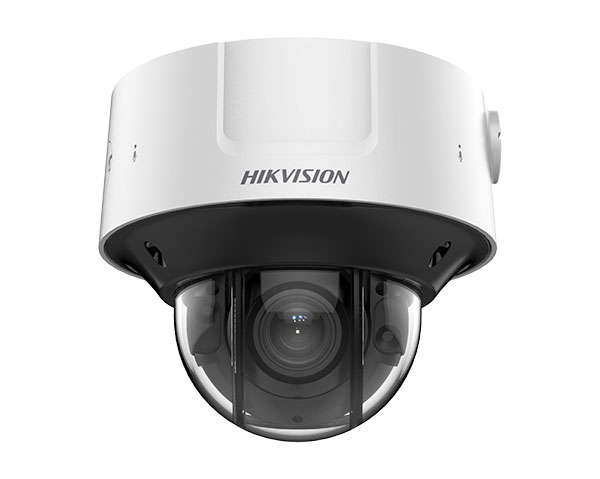

DeepInView Dome Camera 4MP 2.8-12mm iDS-2CD7546G0-IZHSY Hikvision
Hikvision DeepInView dome camera features 4MP resolution and a 2.8-12mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision iDS-2CD7546G0-IZHSY, 4MP IR Varifocal Dome Camera, DeepInView AI Dome Camera
Technical Specifications
- Model: iDS-2CD7546G0-IZHSY
- Image Resolution: 2560 × 1440 pixels, 4 MP
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: 2.8–12 mm motorised varifocal lens
- Lens Aperture: f/1.2–f/2.5, P-Iris
- Horizontal Field of View: 114.5° to 41.8°
- Frame Rate: Up to 50 fps at 50 Hz or 60 fps at 60 Hz
- Minimum Illumination: 0.0005 lux colour at f/1.2; 0 lux with IR
- Infrared Range: Up to 30 m, 850 nm IR
- Wide Dynamic Range: 140 dB
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Audio: Mono audio with G.711, G.722.1, G.726, MP2L2, PCM, AAC and MP3 support
- Network Interface: 10/100/1000 Mbps Ethernet
- Power Supply: 12 VDC, 24 VAC or PoE 802.3at Type 2 Class 4
- Maximum Power Consumption: 15 W
- Storage: MicroSD card support, NAS and automatic network replenishment
- Protection Rating: IP67 water and dust resistance
- Impact Rating: IK10 vandal resistance
- Operating Temperature: -40°C to 60°C
- Artificial Intelligence: Face detection, human and vehicle classification, perimeter protection and queue management
- Dimensions (H x L x W): 141.8mm x 162mm x 162mm
- Weight: 1.565 kg
Key Features
- 4 MP image resolution for detailed surveillance footage
- DarkFighter technology for enhanced low-light performance
- Motorised 2.8–12 mm varifocal lens for flexible viewing angles
- 140 dB WDR for improved detail in high-contrast scenes
- Deep learning analytics for face, human and vehicle detection
- Perimeter protection with line-crossing, intrusion, region entrance and region exit detection
- Five video streams plus up to five custom streams
- H.265+ compression to reduce bandwidth and storage requirements
- IP67-rated housing for outdoor installation
- IK10-rated vandal-resistant dome construction
- Anti-IR reflection bubble for improved night-time image quality
- Supports PoE, 12 VDC and 24 VAC power options
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or electrical technician. Where 240 V mains-powered equipment, fixed wiring or a separate mains power supply is used, installation must comply with applicable Australian electrical requirements. Configure and install the surveillance system in accordance with the project requirements and relevant AS/NZS 62676 guidance.
Applications
- Commercial and industrial CCTV systems
- Outdoor building and perimeter surveillance
- Retail, warehouse and logistics monitoring
- Transport, car park and site security
- Face detection and people analytics
- Vehicle and human classification
- Entry, exit and queue monitoring
- High-risk areas requiring vandal-resistant surveillance equipment
Standards & Compliance
- RCM EMC compliance to AS/NZS CISPR 32:2015 is specified for the camera variant
- Suitable for integration into video surveillance systems designed in accordance with AS/NZS 62676.1.1:2020 and the applicable AS/NZS 62676 series
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- PVC-free construction is specified for this model
- RoHS and REACH environmental compliance are specified by the manufacturer
- IP67 and IK10 protection can extend service life and reduce premature replacement waste
- PoE support can simplify cabling and reduce the need for a separate camera power run
Warranty Information
Hikvision Oceania lists DeepInView network cameras under its five-year premium project-oriented warranty for products manufactured after 1 March 2022. Warranty eligibility depends on the purchase channel, product region and manufacture date; confirm coverage with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm current supply because this model may be superseded by newer product revisions.
