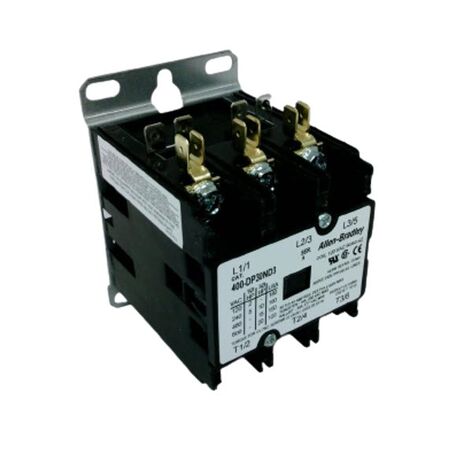

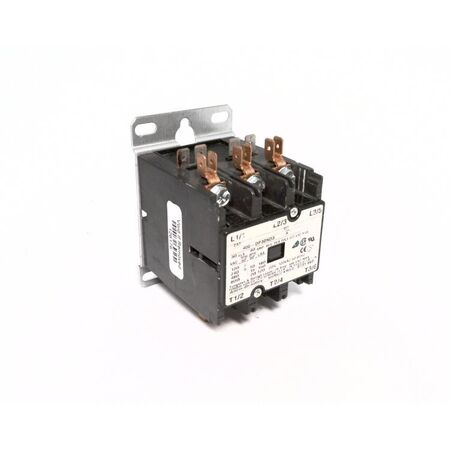

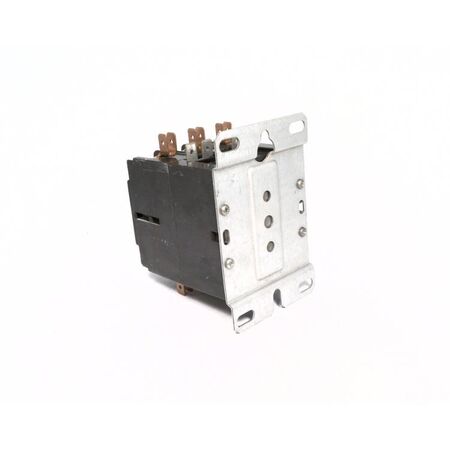

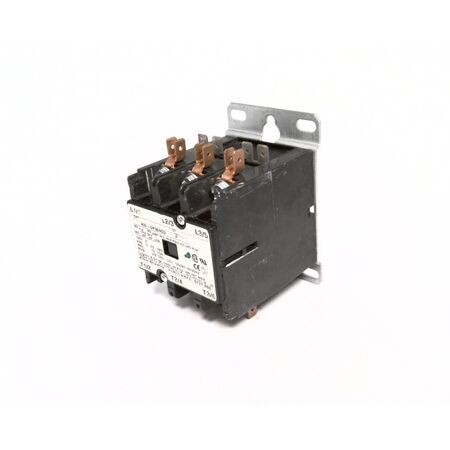

Definite Purpose Contactor 30 Amp | 120 VAC | 3 Pole Configuration | Quick Connect Terminals | by Allen-Bradley
The Definite Purpose Contactor 30 Amp is designed for reliable switching in industrial applications, operating at 120 VAC with a 3 pole configuration. Ideal for HVAC systems and lighting control, it features screw terminals with quick connect for easy wiring, ensuring efficient and safe operation in panel mounting electrical control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 30 Amp
- Voltage: 120 VAC
- Frequency: 50/60 Hz
- Poles: 3
- Terminal Type: Screw terminals with quick connect
- Mounting: Panel mount
- Type: Open type contactor
- Dimensions (H x L x W): 90mm x 80mm x 70mm
- Weight: 1.5 kg
Key Features
- Definite purpose contactor designed for reliable switching
- Open type construction for panel mounting
- 3 pole configuration
- Screw terminals with quick connect terminals for easy wiring
- Operates at 120 VAC, 50/60 Hz
- 30 Amp current rating
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial motor control
- HVAC systems
- Lighting control
- Panel mounting electrical control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by providing reliable motor and equipment control
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 400DP30ND3 Definite Purpose Contactor is available for immediate purchase, ideal for industrial and commercial electrical control applications.
