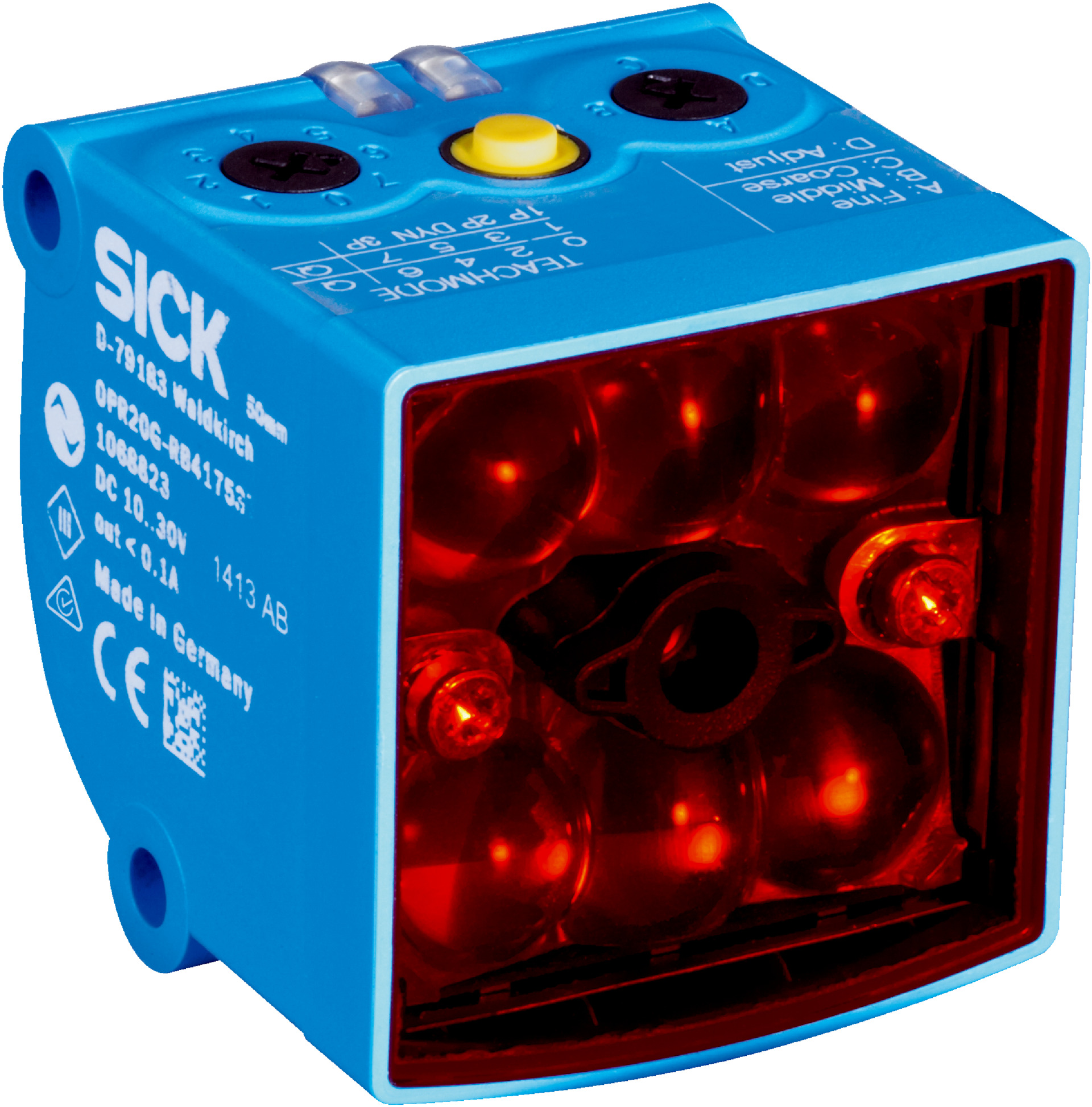

Delta-S Proximity Sensor OPR20G | IP67 Rated | 50mm Sensing Distance | Fast Response Time | by SICK
The Delta-S Proximity Sensor OPR20G is designed for reliable object detection in industrial automation, featuring a sensing distance of up to 50 mm and an IP67 enclosure rating. With a fast response time of just 1 ms and adjustable sensitivity, this sensor is perfect for manufacturing process control and quality inspection, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Delta-S-Technology®
- Sensing distance: ≤ 50 mm with ±5 mm tolerance
- Minimum detectable object: 12 x 14 mm
- Light source: LED, Red 640 nm
- Light spot size: 10 mm x 12 mm
- Object speed max: 2 m/s
- Sensitivity: Fine, middle, coarse
- Adjustment: Potentiometer, IO-Link, teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 150 mA
- Switching frequency: 500 Hz
- Response time: 1 ms
- Switching outputs: 2 push-pull PNP/NPN
- Output current max: < 100 mA
- Connection: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g/11 ms single, 25 g/11 ms continuous
- Dimensions (H x L x W): 44mm x 43mm x 43mm
- Weight: 0.13 kg
Key Features
- Delta-S-Technology® sensor principle for reliable detection
- Rectangular housing design with IP67 enclosure rating
- Sensing distance up to 50 mm with ±5 mm tolerance
- LED red light source with 640 nm wavelength
- Adjustable sensitivity via potentiometer, cable IO-Link, or teach-in button
- Multiple teach-in modes including static and dynamic point teach-in
- Push-pull PNP/NPN switching outputs with max output current <100 mA
- Fast response time of 1 ms and switching frequency of 500 Hz
- Robust against ambient light up to >50 klx and shock load compliant with EN 60068-2-27
- Communication interface with IO-Link for advanced data exchange
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption (<150 mA)
- Durable ABS plastic housing reduces material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

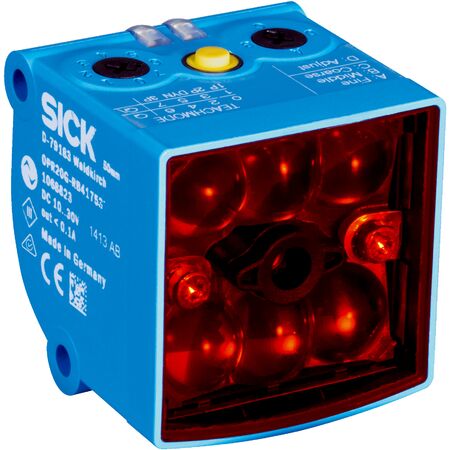

The SICK OPR20G-RB517537A01 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
