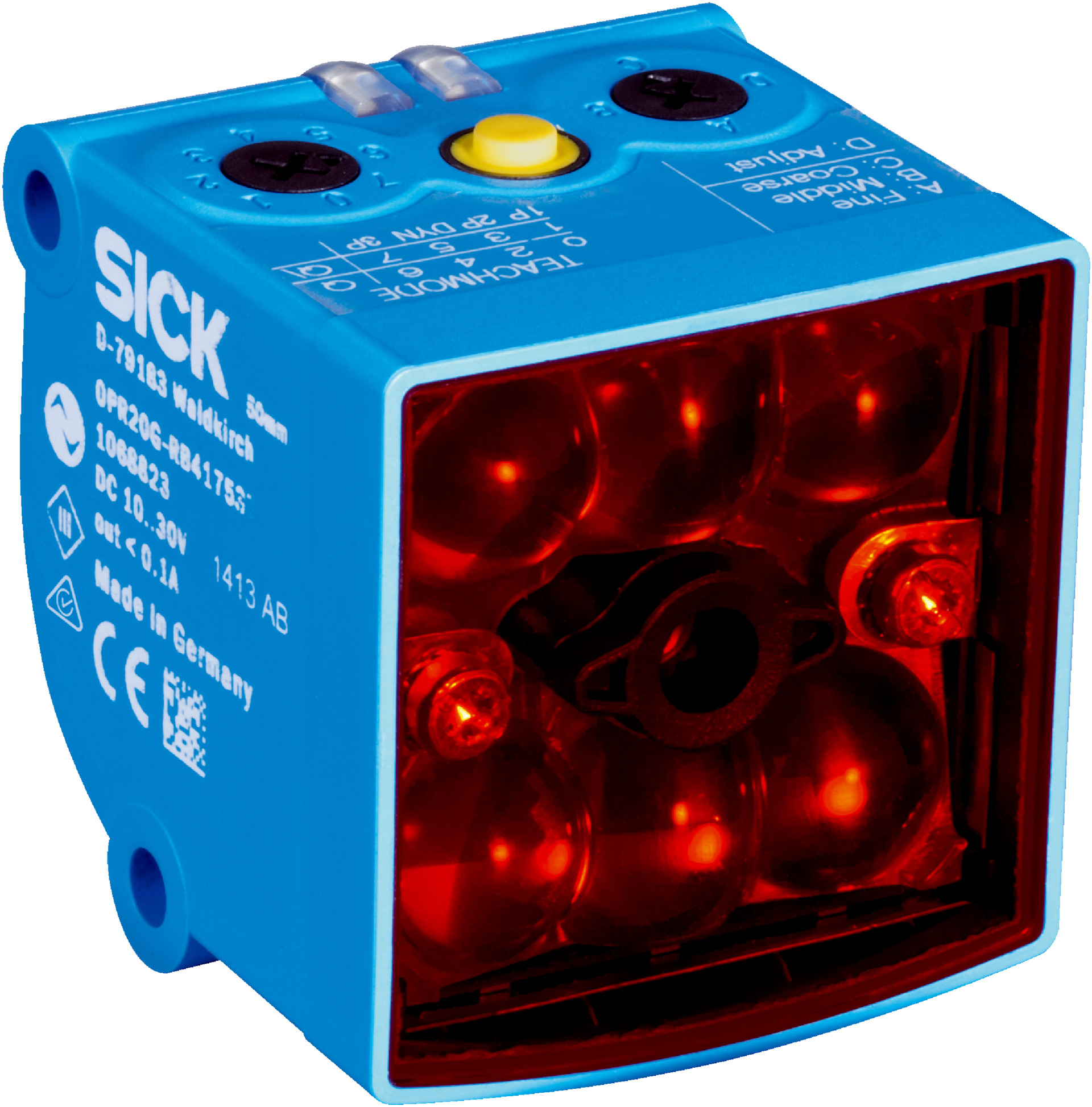

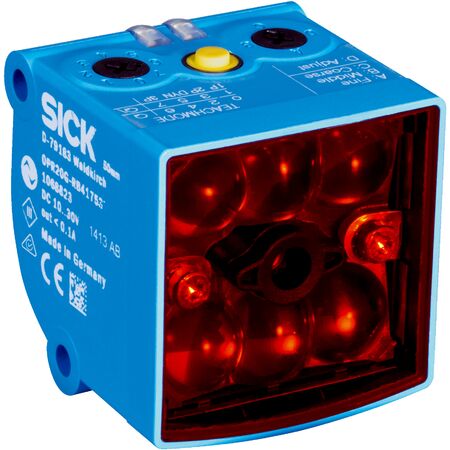

Delta-S Proximity Sensor OPR20G-RB317537 | IP67 Rated | Red LED Light Source | Fast Response Time | by SICK
The Delta-S Proximity Sensor OPR20G-RB317537 is designed for reliable object detection in industrial automation. With a sensing distance of up to 50 mm and a fast response time of just 1 ms, this sensor is perfect for manufacturing process control and quality assurance systems. Its robust IP67 enclosure ensures durability in harsh environments, making it an ideal choice for material handling and packaging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Delta-S-Technology®
- Sensing distance: ≤ 50 mm with ±5 mm tolerance
- Minimum detectable object: 12 x 14 mm
- Light source: Red LED, 640 nm wavelength
- Light spot size: 10 mm x 12 mm
- Object speed max.: 2 m/s
- Sensitivity: Fine, middle, coarse
- Adjustment: Potentiometer, IO-Link, teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 150 mA
- Switching frequency: 500 Hz
- Response time: 1 ms
- Switching outputs: 2 push-pull (PNP/NPN)
- Output current max: < 100 mA
- Connection: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock resistance: 30 g single shock, 25 g continuous shock
- Dimensions (H x L x W): 44mm x 44mm x 43mm
- Weight: 0.13 kg
Key Features
- Delta-S-Technology® sensor principle for reliable detection
- Rectangular housing design with IP67 enclosure rating
- Sensing distance up to 50 mm with ±5 mm tolerance
- Adjustable sensitivity with potentiometer, IO-Link, or teach-in button
- Dual switching outputs (PNP/NPN) with push-pull configuration
- Fast response time of 1 ms and switching frequency of 500 Hz
- LED red light source with 640 nm wavelength
- Robust against ambient light up to >50 klx and shock loads
- Communication via IO-Link with 2.3 ms cycle time
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption (<150 mA)
- Durable ABS plastic housing reduces material waste
- Long service life minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OPR20G-RB317537 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
