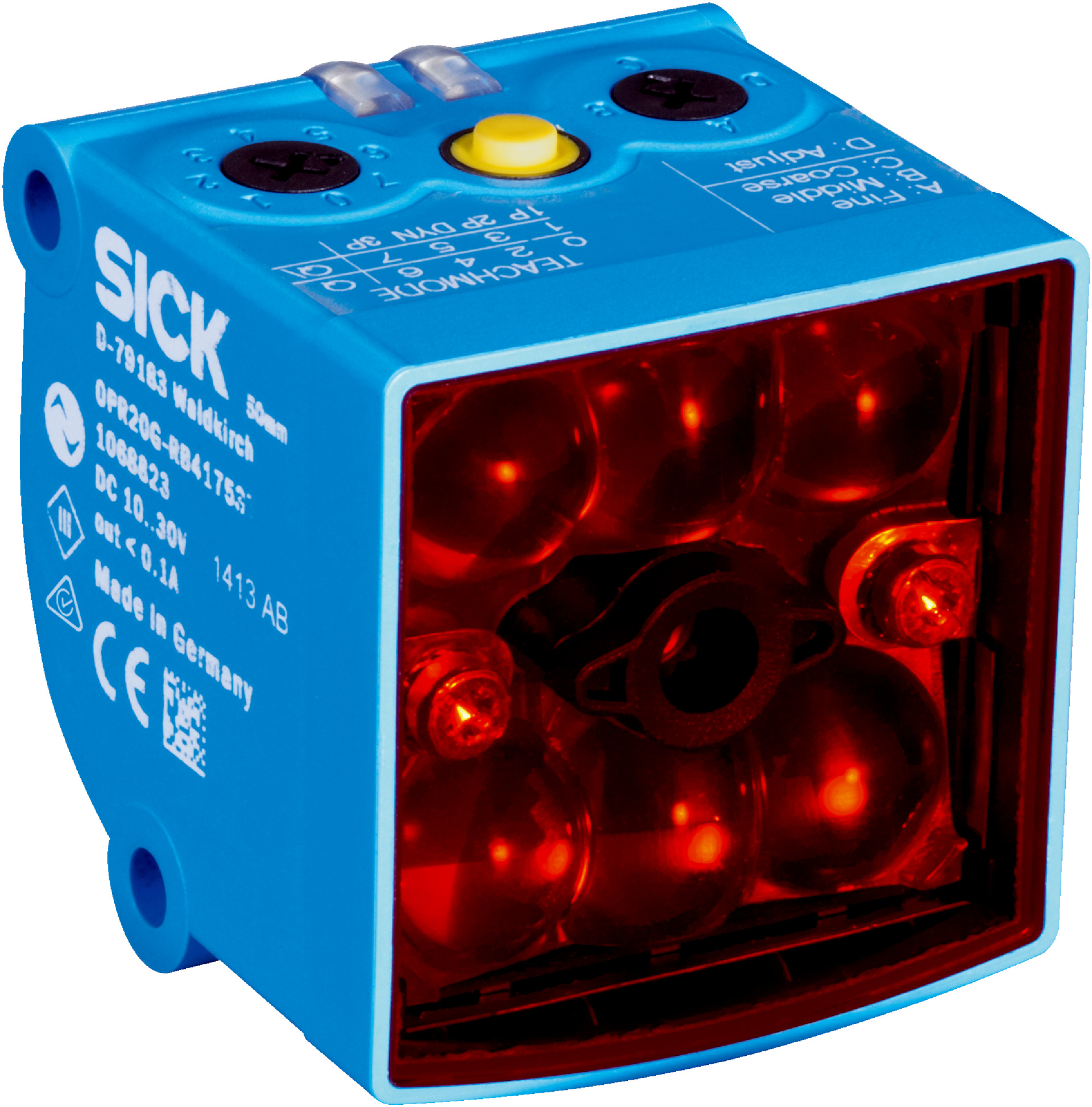

Delta-S Proximity Sensor OPR20G-RB417537 | IP67 Enclosure | 50 mm Sensing Distance | Fast Response Time | by SICK
The Delta-S Proximity Sensor OPR20G-RB417537 is designed for reliable object detection in industrial automation. With a sensing distance of up to 50 mm and an IP67 enclosure rating, it ensures durability in harsh environments. Featuring adjustable sensitivity and dual switching outputs, this sensor is perfect for quality control and process monitoring applications, providing fast response times and robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Delta-S-Technology®
- Sensing distance: ≤ 50 mm with ±5 mm tolerance
- Minimum detectable object: 12 x 14 mm
- Light source: LED, Red 640 nm
- Light spot size: 10 mm x 12 mm
- Object speed max.: 2 m/s
- Sensitivity: Fine, middle, coarse
- Adjustment: Potentiometer, IO-Link, teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 150 mA
- Switching frequency: 500 Hz
- Response time: 1 ms
- Number of switching outputs: 2 (PNP/NPN push-pull)
- Output current max: < 100 mA
- Connection type: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g/11 ms single, 25 g/11 ms continuous
- Dimensions (H x L x W): 44mm x 43mm x 43mm
- Weight: 0.13 kg
Key Features
- Delta-S-Technology® sensor principle for reliable detection
- Rectangular housing design with IP67 enclosure rating
- Sensing distance up to 50 mm with ±5 mm tolerance
- Adjustable sensitivity with potentiometer, cable IO-Link, or teach-in button
- Dual switching outputs (PNP/NPN) with push-pull configuration
- Fast response time of 1 ms and switching frequency of 500 Hz
- Robust against ambient light with immunity > 50 klx
- Communication via IO-Link with 2.3 ms cycle time
- LED red light source at 640 nm wavelength
- Shock resistant according to EN 60068-2-27
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Quality control and process monitoring
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption (<150 mA)
- Durable ABS plastic housing reduces need for frequent replacements
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OPR20G-RB417537 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
