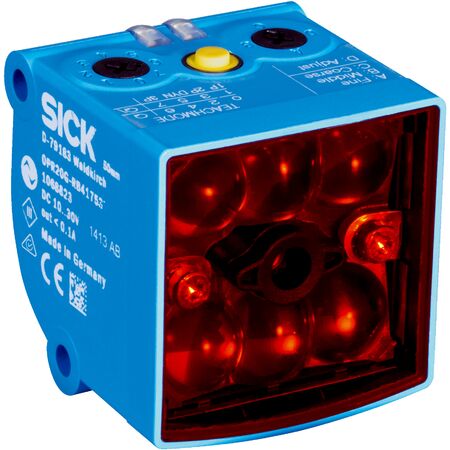

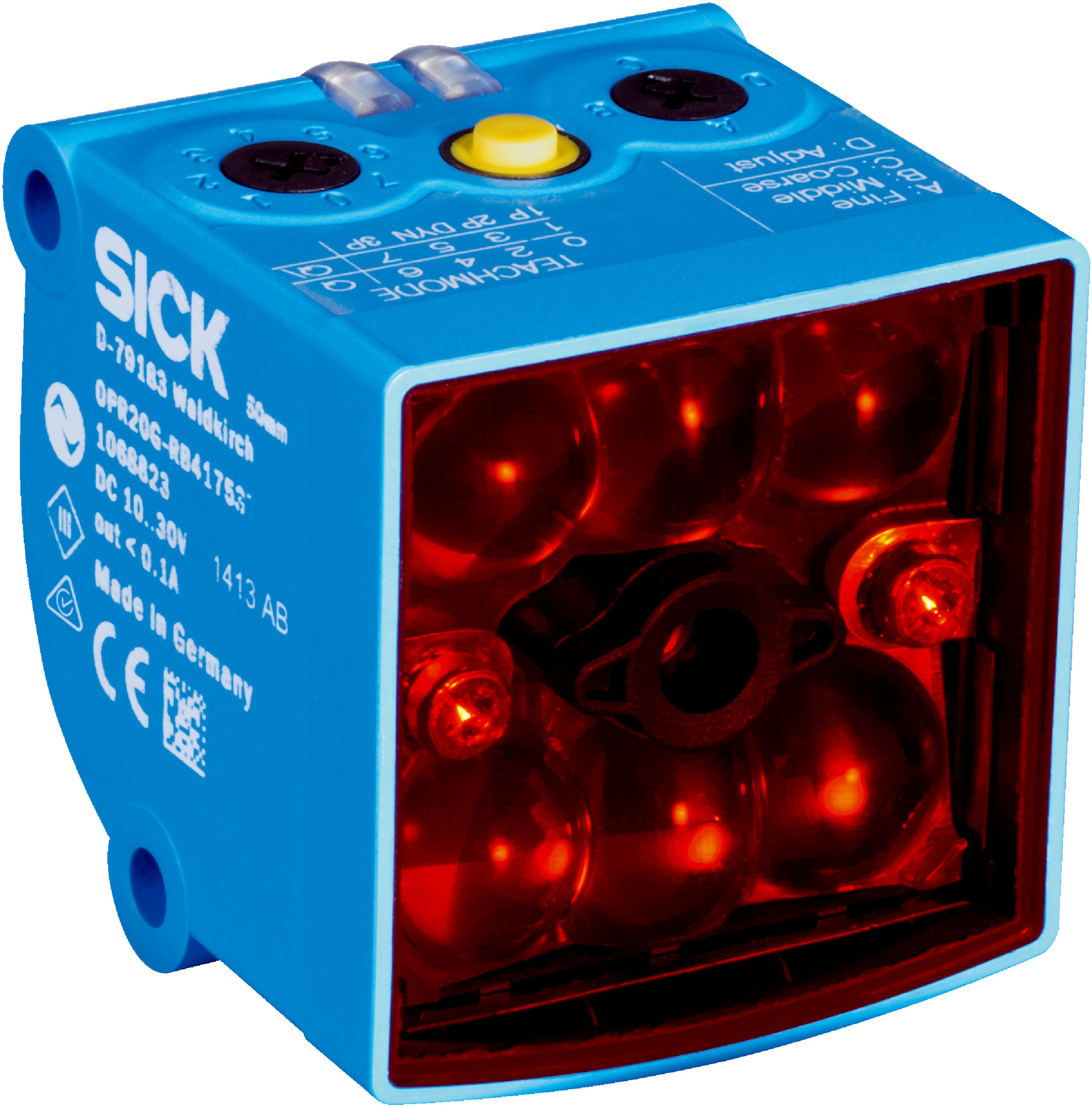

Delta-S-Technology Proximity Sensor | IP67 Rated | 50 mm Sensing Distance | Fast Response Time | by SICK
The Delta-S-Technology Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing distance of up to 50 mm and a fast response time of just 1 ms. With its robust IP67-rated ABS housing, this sensor is perfect for manufacturing process control, packaging, and quality inspection, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Delta-S-Technology®
- Sensing distance: ≤ 50 mm with ±5 mm tolerance
- Minimum detectable object: 12 x 14 mm
- Light source: LED, Red, 640 nm wavelength
- Light spot size: 10 mm x 12 mm
- Object speed max: 2 m/s
- Sensitivity: Fine, middle, coarse
- Adjustment: Potentiometer, cable teach-in, single teach-in button
- Teach-in modes: Static 1-point, Static 2-point, Dynamic 2-point, Static 3-point
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 150 mA
- Switching frequency: 500 Hz
- Response time: 1 ms
- Number of switching outputs: 2 (Q1, Q2)
- Switching output: Push-pull PNP/NPN
- Output current max: < 100 mA
- Connection type: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Ambient light immunity: > 50 klx
- Shock load: 30 g/11 ms single, 25 g/11 ms continuous
- Dimensions (H x L x W): 44mm x 43mm x 43mm
- Weight: 0.13 kg
Key Features
- Delta-S-Technology® sensor principle for reliable detection
- Rectangular plastic ABS housing with IP67 enclosure rating
- Sensing distance up to 50 mm with ±5 mm tolerance
- LED red light source with 640 nm wavelength
- Adjustable sensitivity via potentiometer and teach-in modes
- Fast response time of 1 ms and switching frequency of 500 Hz
- Dual push-pull switching outputs (PNP/NPN)
- Robust against ambient light up to >50 klx and shock loads
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low current consumption (<150 mA)
- Durable ABS housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OPR20G-RB111517 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
