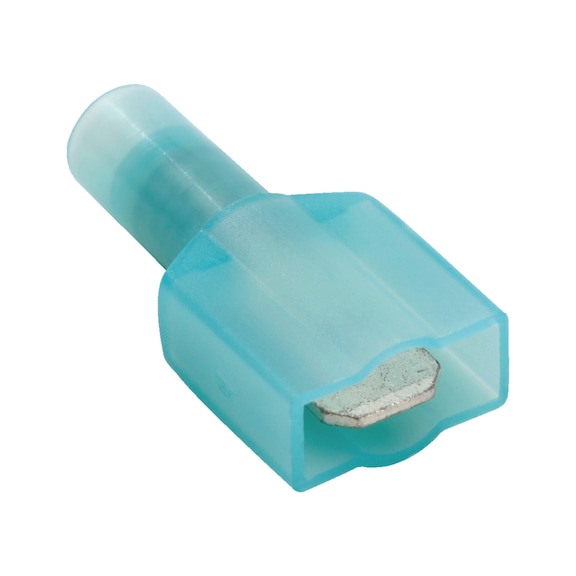

Detachable Blade Connector TABCON Insulated | 1.5-2.5 mm² Wire | 300 V/DC | Blue | @Pack of 10 | by Wurth
The Detachable Blade Connector TABCON Insulated is perfect for electrical branch connections, accommodating wire sizes from 1.5 to 2.5 mm². Designed for easy use with crimping tools, this blue connector ensures secure connections in residential, commercial, and industrial wiring applications. With a maximum voltage of 300 V/DC and a temperature rating of 105 °C, it’s built for reliability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Detachable Blade Connector TABCON Insulated | 1.5-2.5 mm² Wire | 300 V/DC | Blue | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5559521
Alternatively Known As: Insulated blade connector, TABCON insulated connector, crimp connector, detachable blade terminal
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Max. nominal voltage: 300 V/DC
- Max. temperature conditions: 105 °C
- Material: Plastic
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.01 kg
Key Features
- Designed for branch connections in any desired position
- Extremely easy to use with crimping tool for insulated cable connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and safe connections.
Applications
- Electrical branch connections in various positions
- Insulated cable connections in residential, commercial, and industrial wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Plastic insulation reduces risk of short circuits and electrical faults, enhancing safety and reducing waste from electrical failures
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Detachable Blade Connector TABCON INSULATED F0555952 15 25SMM 10 PCS is available now for immediate purchase. Ideal for electrical wiring and branch connections in residential, commercial, and industrial applications.
