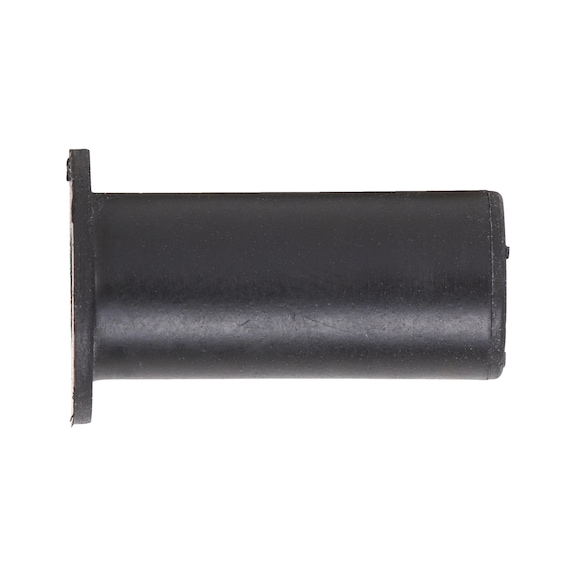

Detachable Electrical Insulation Rivet | Vibration & Noise Damping | M5 Thread | Dome Head | by Wurth
The Detachable Electrical Insulation Rivet is designed for reliable fastening in automotive and industrial applications. With a unique vibration and noise-damping function, this M5 threaded rivet ensures secure connections in blind or pocket holes. Made from ozone-resistant chloroprene, it performs well in temperatures ranging from -30°C to 80°C, making it ideal for various materials and environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Detachable Electrical Insulation Rivet | Vibration & Noise Damping | M5 Thread | Dome Head | by Wurth
Brand: Wurth
SKU: 9487550
Alternatively Known As: Insulating Rivet, Electrical Insulation Rivet, Vibration Damping Rivet, Noise Dampening Rivet, Detachable Rivet Fastener
Technical Specifications
- Thread type x nominal diameter (D): M5
- Head diameter (d1): 14.0 mm
- Outer diameter (d2): 9.6 mm
- Length (l1): 21.5 mm
- Head height (k1): 0.9 mm
- Min./max. grip range (s1): 4.0-11.6 mm
- Material: Chloroprene with brass insert
- Max. drill hole diameter: 9.9 mm
- Min. tightening torque: 0.3 Nm
- Min./max. tightening torque: 0.3-0.9 Nm
- Min. processing temperature: -30°C
- Max. processing temperature: 80°C
- Shore A hardness: 60
- Head type: Dome head
- Dimensions (H x L x W): 21.5mm x 21.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Detachable rivet connection with electrical insulation
- Vibration and noise-damping function
- Dual function as thread carrier or fastener
- Air and moisture-tight connection
- Ozone-resistant material
- Suitable for various materials
- Installation temperature range from -30°C to +80°C
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with rivet fastening techniques to ensure proper torque and secure fastening.
Applications
- Fastening metal and plastic connections in automotive, industrial, and construction applications
- Suitable for use in blind or pocket holes
- Ideal for vibration and noise damping fastening needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Ozone-resistant properties contribute to longer product life
- Supports secure fastening reducing material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Detachable Electrically Insulating Rivet Connection is available for immediate purchase, ideal for industrial and automotive fastening applications requiring vibration and noise damping.
