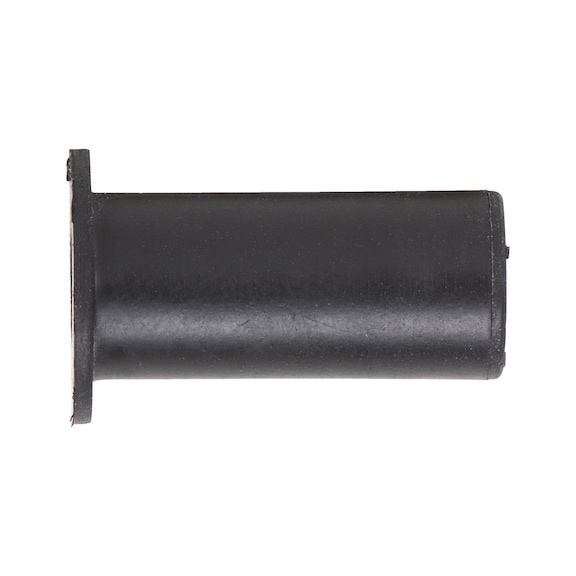

Detachable Electrically Insulating Rivet | Vibration Damping | Dome Head Design | by Wurth
The Detachable Electrically Insulating Rivet is designed for reliable fastening in automotive, industrial, and construction applications. With a vibration and noise-damping function, this dome head rivet ensures an air and moisture-tight connection, making it ideal for various materials. Engineered for professional installation, it offers durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Detachable Electrically Insulating Rivet | Vibration Damping | Dome Head Design | by Wurth
Brand: Wurth
SKU: 948753
Alternatively Known As: Insulating Rivet, Vibration Damping Rivet, Electrically Insulating Fastener, Dome Head Rivet
Technical Specifications
- Thread type x nominal diameter (D): M3
- Head diameter (d1): 11.0 mm
- Outer diameter (d2): 7.9 mm
- Length (l1): 12.6 mm
- Head height (k1): 1.4 mm
- Min./max. grip range (s1): 0.4-4.0 mm
- Material: Chloroprene with brass insert
- Max. drill hole diameter: 8.3 mm
- Min. tightening torque: 0.25 Nm
- Min./max. tightening torque: 0.25-0.5 Nm
- Min. processing temperature: -30°C
- Max. processing temperature: 80°C
- Shore A hardness: 60
- Head type: Dome head
- Dimensions (H x L x W): 1.4mm x 12.6mm x 11mm
- Weight: 0.1 kg
Key Features
- Detachable and electrically insulating rivet connection
- Vibration and noise-damping function
- Dual function as thread carrier or fastener
- Air and moisture-tight connection
- Ozone-resistant
- Possible installation temperatures from -30°C to +80°C
- Ideal for various materials
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with rivet fastening techniques to ensure proper torque and secure fastening.
Applications
- Fastening metal and plastic connections in automotive, industrial, and construction applications
- Suitable for use in blind or pocket holes
- Ideal for vibration and noise damping fastening needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Ozone-resistant properties enhance longevity in outdoor applications
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Detachable Electrically Insulating Rivet Connection is available now for immediate purchase. Ideal for industrial, automotive, and construction fastening applications.
