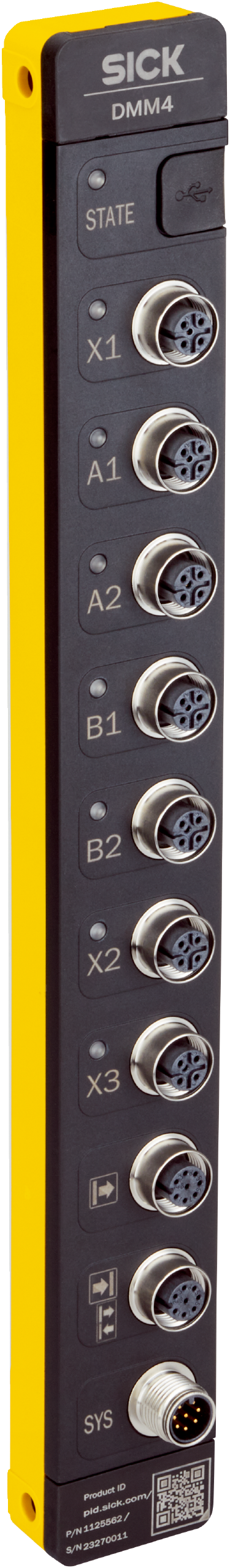

DETEC/DETEM Muting Module | Type 4 Safety | SIL 3 Compliance | IP65/IP67 Rated | by SICK
The DETEC/DETEM Muting Module enhances safety in industrial automation with Type 4 safety standards and SIL 3 compliance. Designed for integration with electro-sensitive protective equipment, it features multiple inputs and outputs, robust diagnostics, and a durable IP65/IP67 rated housing, making it ideal for machine safeguarding in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DMM4 Muting Module, DETEC Muting Module, DETEM Muting Module, Safety Light Curtain Extension Module, ESPE Extension Module
Technical Specifications
- Type: Type 4 (IEC 61496)
- Safety Integrity Level: SIL 3 (IEC 61508, IEC 62061)
- Category: Category 4 (ISO 13849)
- Performance Level: PL e (ISO 13849)
- PFHD: 3.5 x 10^-9
- Mission Time: 20 years (ISO 13849)
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual Ripple: ≤ 10%
- System Connection: Male connector M12, 8-pin
- Sender Connection: Female connector M12, 8-pin
- Receiver Connection: Female connector M12, 8-pin
- Muting Sensors Connection: 4 × M12 female connector, 5-pin
- Device Connections: 3 × M12 male connector, 5-pin
- Configuration Interface: USB 2.0 Type-C via Safety Designer software
- Protection Class: III (IEC 61140)
- Enclosure Rating: IP65 / IP67 (IEC 60529)
- Operating Temperature: –30 °C to +55 °C
- Storage Temperature: –30 °C to +70 °C
- Vibration Resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock Resistance: 15 g / 6 ms
- EMC Compliance: IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4
- Dimensions (H x L x W): 290mm x 33mm x 35mm
- Weight: 1.2 kg
Key Features
- Extends functional scope of ESPE with function package DMM4
- Multiple inputs and outputs for connection to ESPE and other devices or sensors
- Compatible with deTec4, deTem4, and deTem4 A/P safety sensors
- Supports muting with 2-signal and 4-signal muting
- Features beam coding, restart interlock, external device monitoring, and application diagnostic output
- Configurable multiple sampling and operating mode selection
- Status LEDs for display elements
- USB 2.0 Type-C interface for configuration and diagnostics via Safety Designer software
- High protection class IP65 / IP67 for harsh environments
- Robust mechanical design with vibration and shock resistance
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system professionals or certified electricians familiar with ESPE and industrial safety standards.
Applications
- Integration with electro-sensitive protective equipment (ESPE) such as safety light curtains and safety light-beam sensors
- Industrial safety systems requiring muting functions and extended safety features
- Machine safeguarding in manufacturing and automation environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental impact
- Durable IP65/IP67 rated housing reduces need for frequent replacements
- Supports efficient machine operation through advanced diagnostics and monitoring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DMM4-AA110A0A0 Muting Module is available for immediate purchase, ideal for enhancing safety in industrial automation and machine safeguarding applications.
