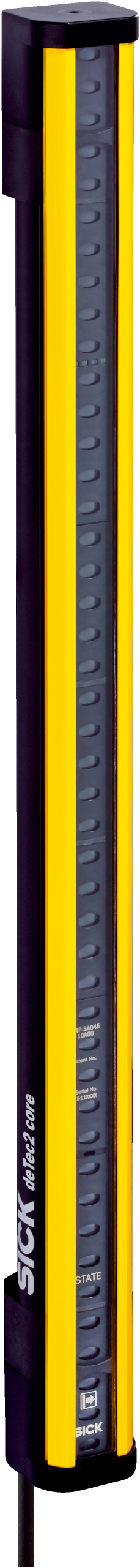

deTec2 Core Sender Safety Sensor | 30 mm Resolution | 15 m Scanning Range | IP65 & IP67 Rated | by SICK
The deTec2 Core Sender Safety Sensor is designed for industrial safety applications, featuring a 30 mm resolution and a scanning range of 15 m. With a protective field height of 900 mm and no blind zones, it ensures reliable monitoring and protection. Built for durability, it operates in temperatures from -30 °C to +55 °C and is compliant with safety standards, making it ideal for various industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTec2 Core Sender, Industrial Safety Sensor, Optical Safety Sensor Sender
Technical Specifications
- Product version: deTec2 Core
- System part: Sender
- Compatible receiver: 1213209
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 900 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible use: > 15 x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Power consumption typical: 1.01 W
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 900mm x 150mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 900 mm with no blind zones
- Optical synchronization for reliable operation
- Type 2 safety sensor compliant with IEC 61496-1
- Safety integrity level SIL 1 (IEC 61508)
- Category 2 (ISO 13849-1) with Performance Level PL c
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- Protection class III (IEC 61140) with IP65 and IP67 enclosure rating
- Wide ambient operating temperature range from -30 °C to +55 °C
- Vibration and shock resistant according to EN 60068 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment for safety monitoring and protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of approximately 1.01 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

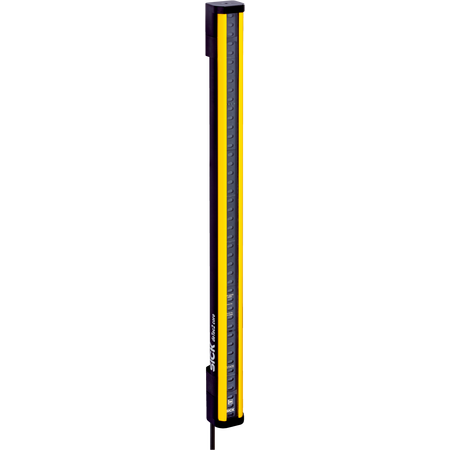

The SICK C2C-SA09030A10000 deTec2 Core Sender Safety Sensor is available for immediate purchase, ideal for industrial safety applications requiring reliable protective field monitoring.
