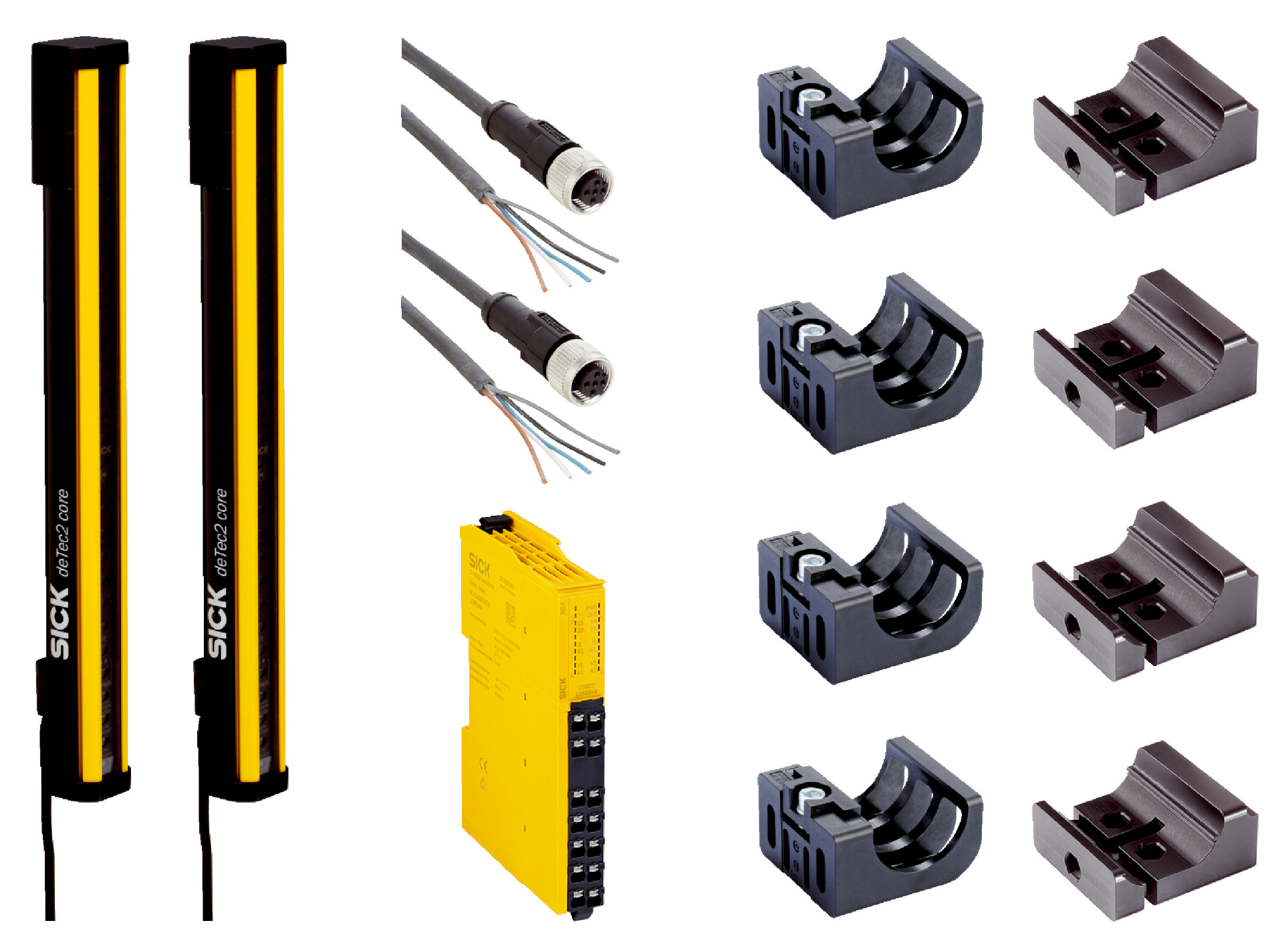

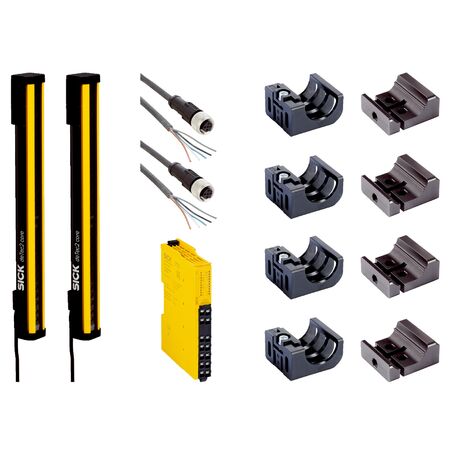

deTec2 Core Set 14/600 | 14mm Resolution | 600mm Protective Field | IP65 & IP67 Rated | by SICK
The deTec2 Core Set 14/600 is a cutting-edge safety light curtain designed for industrial environments, featuring a 14mm resolution and a protective field height of 600mm with no blind zones. Ideal for machine safeguarding and personnel protection, this robust sensor operates in temperatures from -30 °C to +55 °C and offers high protection ratings of IP65 and IP67, ensuring reliable performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Cable bend radius: Stationary > 12x cable diameter, Flexible > 15x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Output signal switching devices (OSSDs): 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm near-infrared (NIR), invisible light
- Dimensions (H x L x W): 600mm x 100mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 600 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection class IP65 and IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical installation practices to ensure compliance and safety.
Applications
- Industrial safety for normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
- AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK deTec2 Core Set 14/600 is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
