deTec2 Core Set 30/2100 | 30mm Resolution | 2,100mm Protective Field | IP65 & IP67 Rated | by SICK
The deTec2 Core Set 30/2100 is a cutting-edge safety light curtain designed for industrial safety applications. With a resolution of 30mm and a protective field height of 2,100mm, it ensures reliable machine safeguarding and personnel protection. Built for durability with an IP65 and IP67 rating, this system is perfect for automation and manufacturing environments, providing robust performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTec2 Core

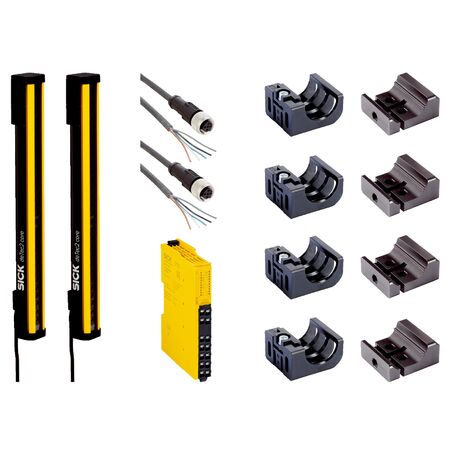

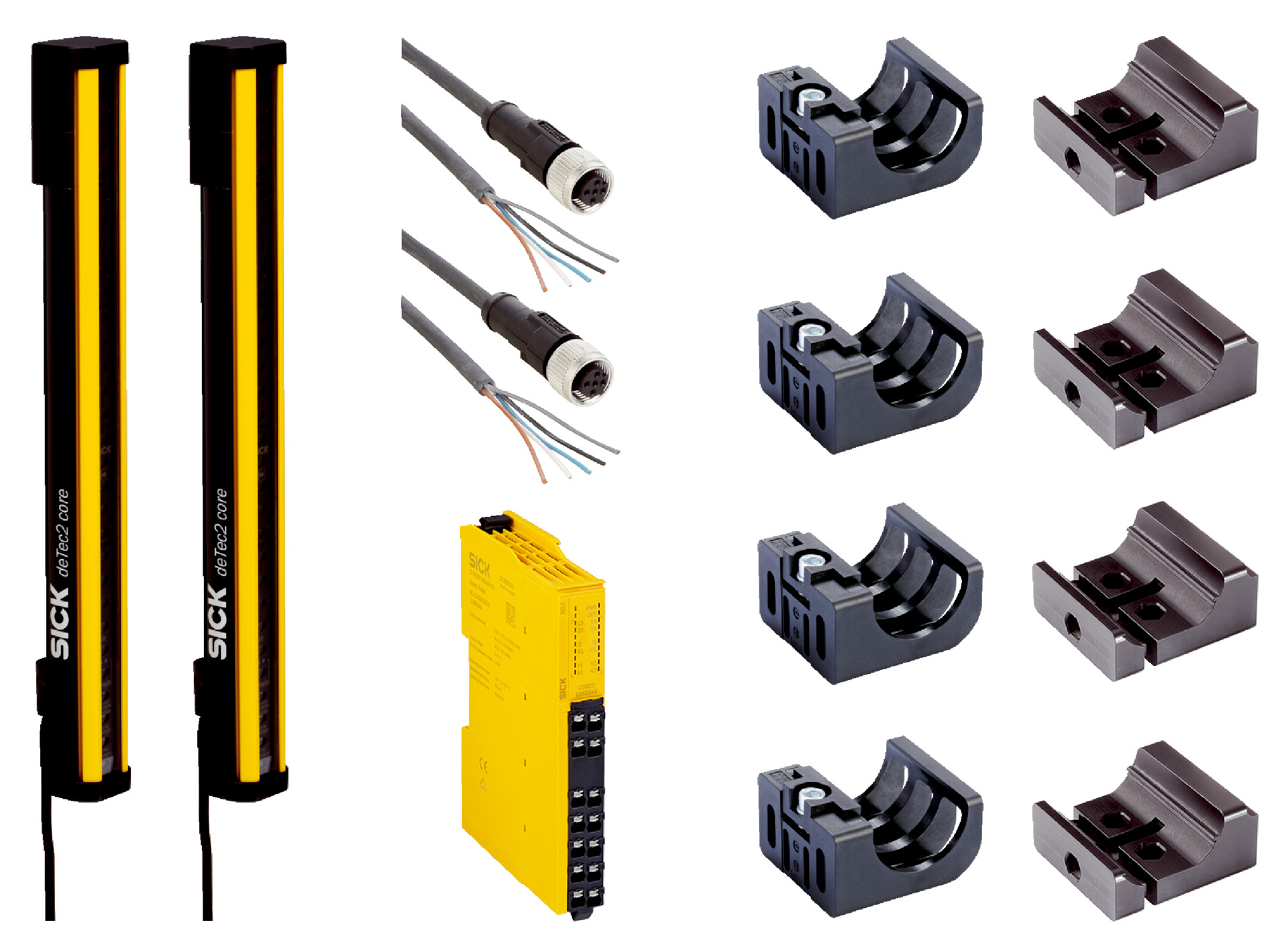

- System part: Set including sender, receiver, brackets, cables, safety relay, and instructions
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin, 150 mm cable length, 4.3 mm cable diameter
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm near-infrared (NIR), invisible light
- Dimensions (H x L x W): 2100mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 2,100 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical installation practices to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec2 Core Set 30/2100 is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
