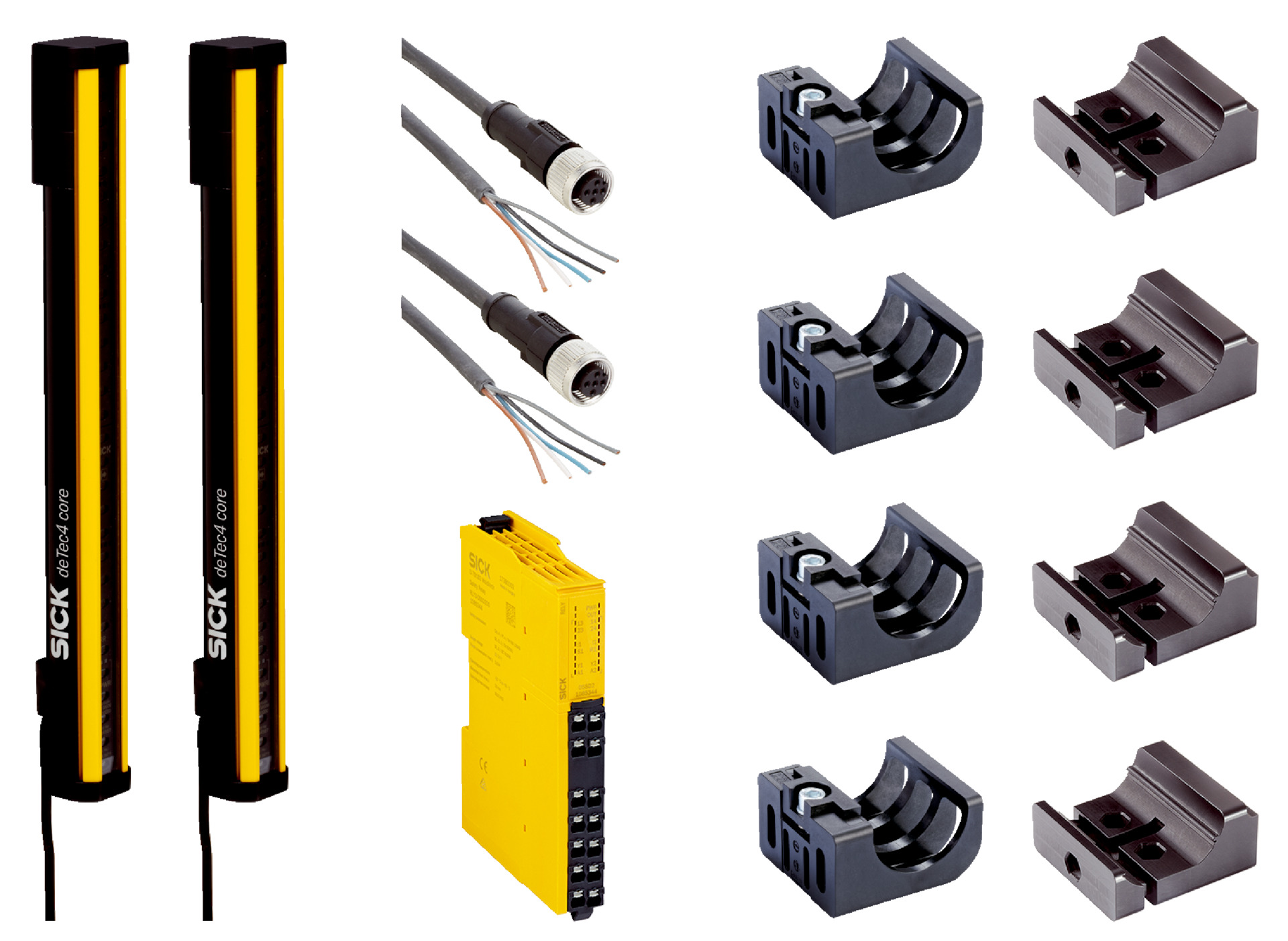

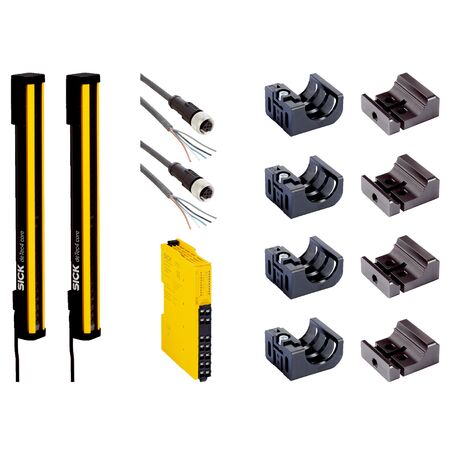

deTec4 Core Set 30/1350 | 30 mm Resolution | 15 m Scanning Range | Type 4 Safety Light Curtain | by SICK
The deTec4 Core Set 30/1350 is a cutting-edge safety light curtain designed for industrial applications. With a resolution of 30 mm and a scanning range of 15 m, it ensures maximum protection without blind zones. This Type 4 safety sensor, compliant with IEC standards, is perfect for machine safeguarding and personnel protection, providing reliable operation with optical synchronization and robust aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTec4 Core
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,350 mm
- No blind zones
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state: At least one OSSD is OFF in fault condition
- System connection: Plug, M12, 5-pin, 150 mm cable length
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Output signal: 2 PNP semiconductors, short-circuit protected
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), wavelength 850 nm
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 1,350 mm with no blind zones
- Optical synchronization for reliable operation
- Type 4 safety light curtain compliant with IEC 61496-1
- Safety integrity level SIL 3 and Performance level PL e
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating IP65 and IP67
- Wide operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety for normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK deTec4 Core Set 30/1350 is available for immediate purchase, ideal for industrial safety applications requiring reliable and certified safety light curtains.
