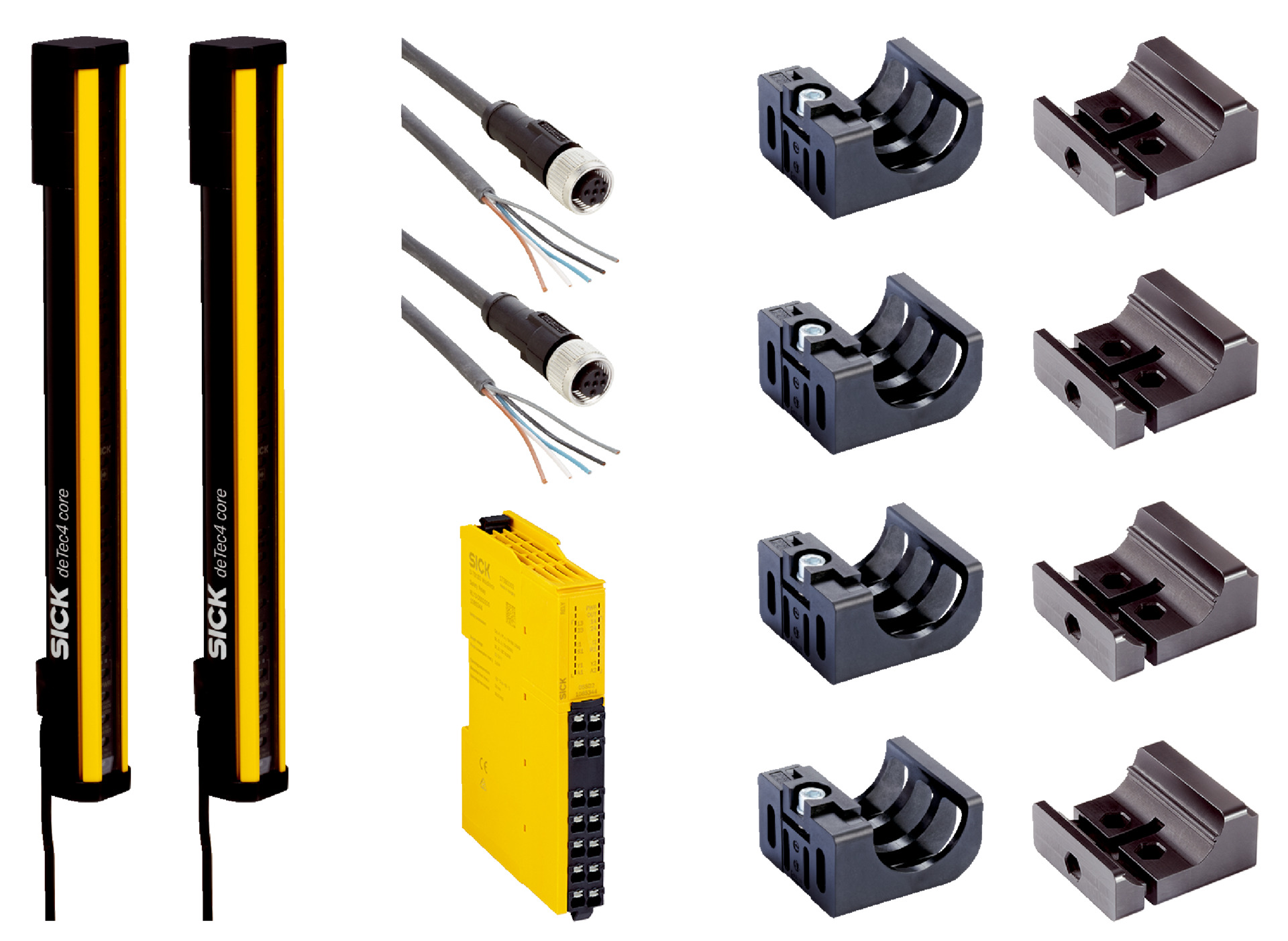

deTec4 Core Set 30/450 | 30 mm Resolution | 15 m Scanning Range | Type 4 Safety | by SICK
The deTec4 Core Set 30/450 is a cutting-edge safety light curtain designed for industrial applications, featuring a 30 mm resolution and a scanning range of 15 m. With a protective field height of 450 mm and no blind zones, it ensures reliable machine safeguarding and personnel protection. Built to meet Type 4 safety standards, this sensor is ideal for automation and manufacturing safety systems, providing peace of mind in any industrial environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTec4 Core
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 450 mm
- No blind zones
- Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin, 150 mm cable length
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light wavelength: 850 nm near-infrared (NIR), invisible
- Dimensions (H x L x W): 450mm x 300mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 450 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- Type 4 safety light curtain compliant with IEC 61496-1
- Safety integrity level SIL 3 and Performance level PL e
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection class IP65 and IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical installation practices to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK deTec4 Core Set 30/450 is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
