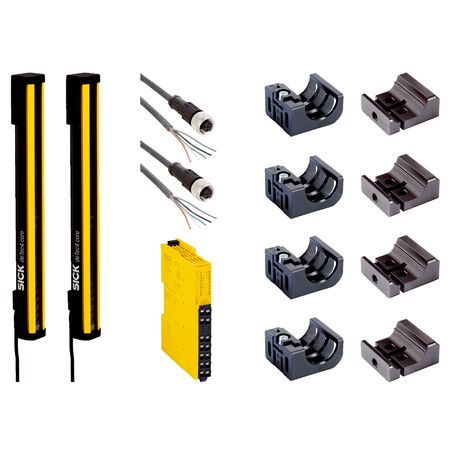

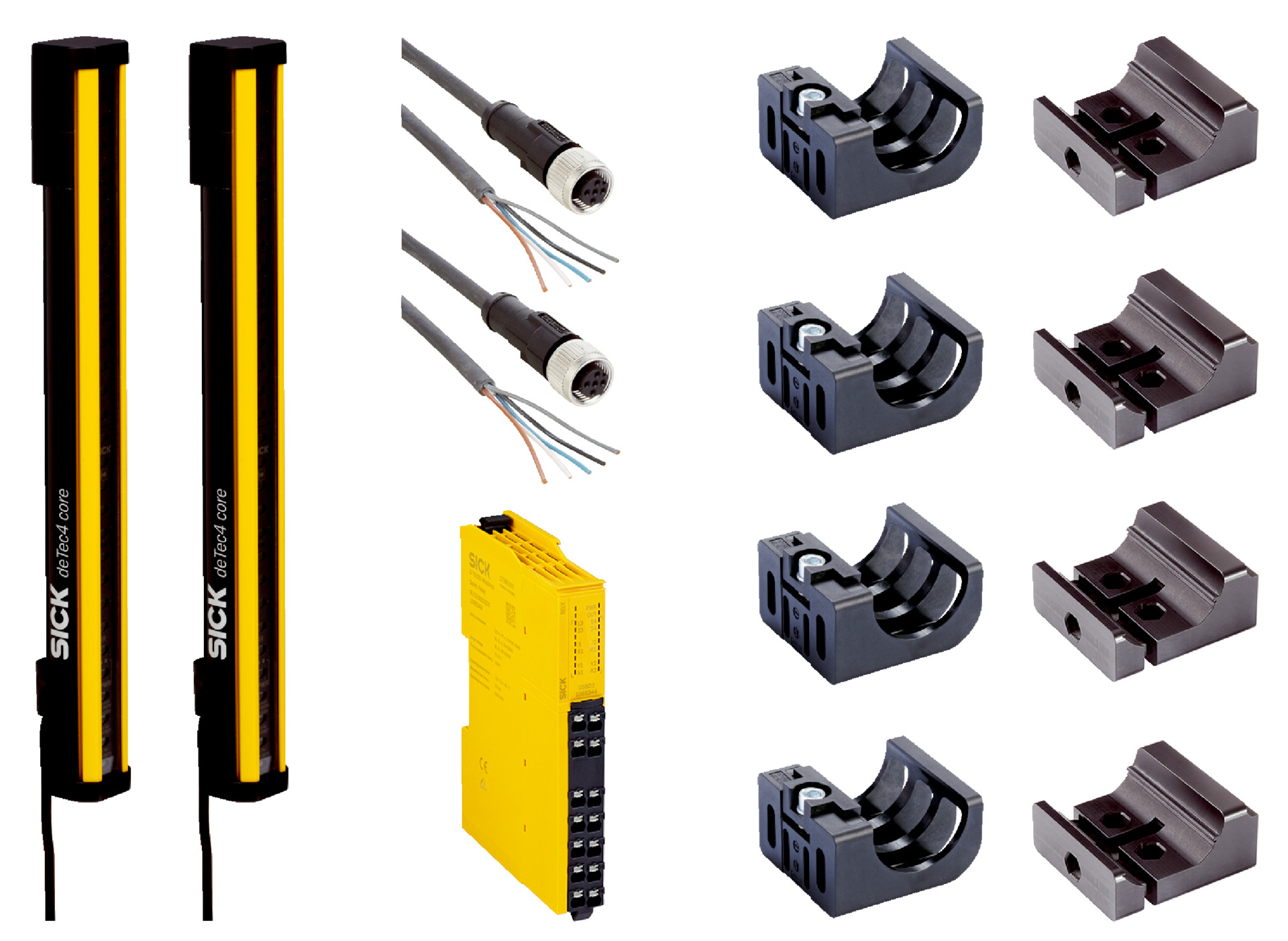

deTec4 Core Set 30/600 | Type 4 Safety Light Curtain | SIL 3 & IP65/IP67 Rated | by SICK
The deTec4 Core Set 30/600 is a Type 4 safety light curtain designed for industrial safety applications. With a resolution of 30 mm and a protective field height of 600 mm, it ensures reliable machine safeguarding and personnel protection. Built for harsh environments, it features an aluminum housing, optical synchronization, and an impressive operational temperature range of -30 °C to +55 °C, making it ideal for various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm near-infrared (NIR), invisible
- Dimensions (H x L x W): 600mm x 150mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 600 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Housing made from aluminum extruded profile
- High protection class IP65 and IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Energy-efficient operation with low power consumption
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec4 Core Set 30/600 is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
