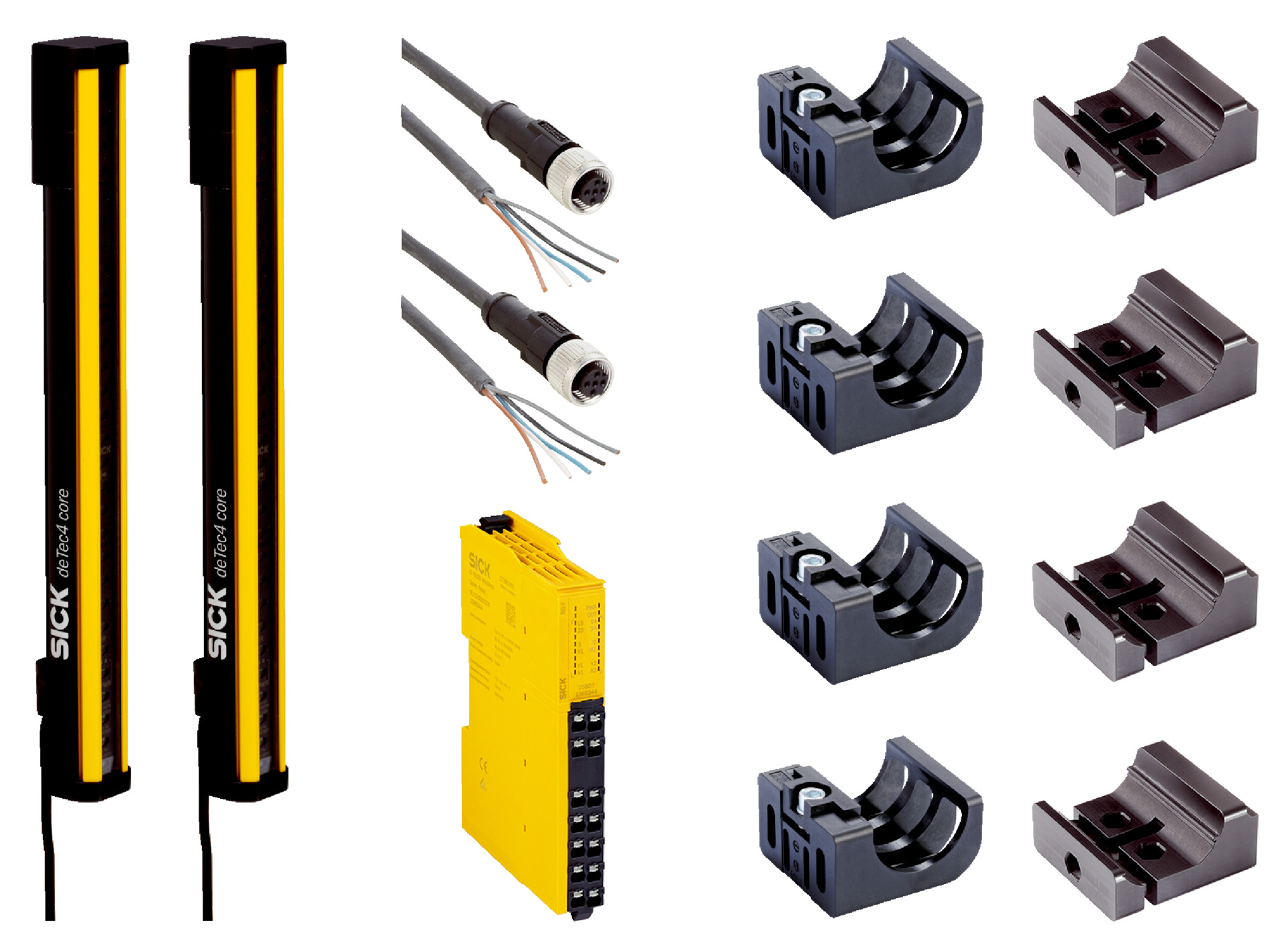

deTec4 Core Set Safety Light Curtain | 14 mm Resolution | 10 m Scanning Range | SIL 3 Safety Level | by SICK
The deTec4 Core Set Safety Light Curtain features a 14 mm resolution and a scanning range of 10 m, making it ideal for industrial safety applications in manufacturing and automation. With a protective field height of 300 mm and a high safety integrity level of SIL 3, this light curtain ensures reliable operation and compliance with safety standards, enhancing workplace safety and reducing the risk of accidents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 300 mm
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin, 150 mm cable length
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Aluminum extruded profile
- Wavelength: 850 nm near-infrared (NIR), invisible
- Dimensions (H x L x W): 300mm x 100mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with 14 mm resolution
- Protective field height of 300 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of protective field width
- LED display elements for status indication
- High safety integrity level SIL 3 and performance level PL e
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation by qualified personnel trained in safety light curtain systems is required to ensure compliance with safety standards and proper integration.
Applications
- Industrial safety for machinery and automation
- Protection in normal industrial environments
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing supports long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec4 Core Set 14/300 is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
