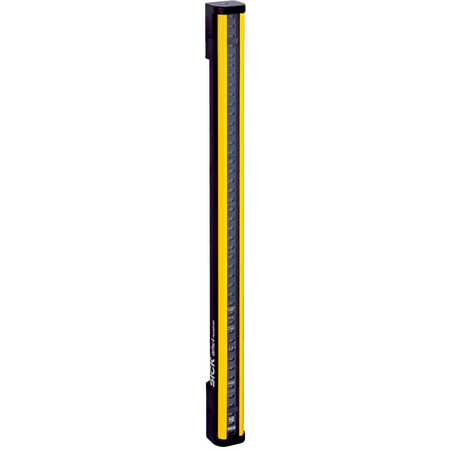

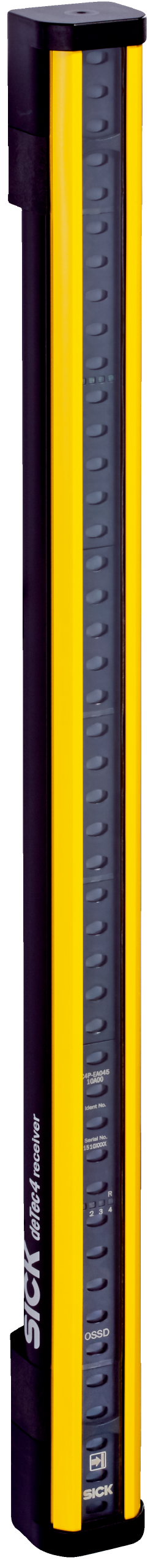

deTec4 Safety Light Curtain Receiver | 30 mm Resolution | 30 m Scanning Range | IP65 & IP67 Rated | by SICK
The deTec4 Safety Light Curtain Receiver is designed for industrial safety applications, featuring a 30 mm resolution and a scanning range of 30 m. With a protective field height of 450 mm and a fast response time of 10 ms, it ensures optimal safety performance. Ideal for normal industrial environments, this receiver offers advanced features like optical synchronization and external device monitoring for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTec4 Safety Light Curtain Receiver, SICK Safety Light Curtain, Industrial Safety Light Curtain Receiver
Technical Specifications
- Product version: deTec4
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 450 mm
- Response time: 10 ms (Uncoded), 14 ms (code 1 or code 2)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 3.3 W
- Output type: PNP semiconductor, short-circuit protected
- Output current per OSSD: ≤ 500 mA
- Application diagnostic output current: ≤ 100 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 450mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 30 m
- Protective field height of 450 mm
- No blind zones with optical synchronization
- Response time of 10 ms (Uncoded) and 14 ms (code 1 or code 2)
- Automatic calibration of protective field width
- Beam coding and restart interlock
- External device monitoring (EDM) and cascading capability
- Smart presence detection and reduced resolution options
- Dynamic protective field width during operation
- Differentiation between person and material with 2-signal muting
- LED display elements with synchronization status indication
- Application diagnostic output (ADO), IO-Link, and NFC support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 3.3 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-EA04531C00 deTec4 Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and advanced protective features.
