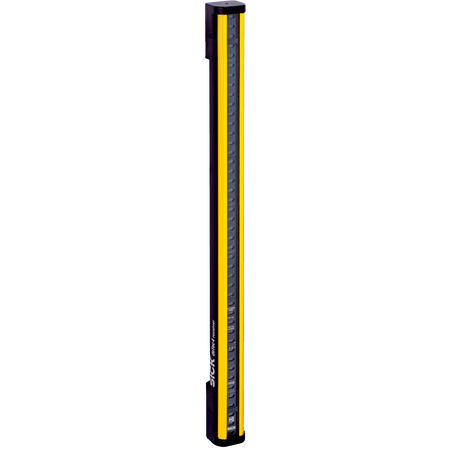

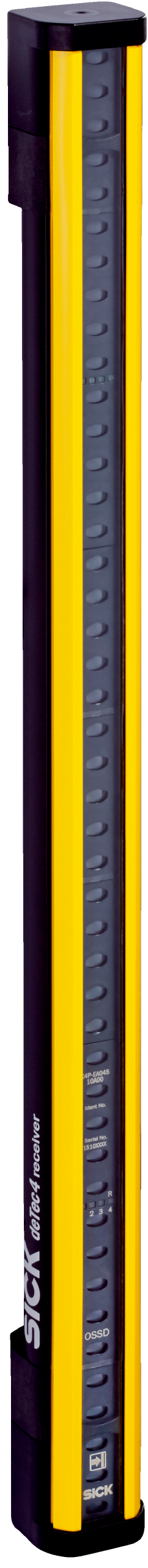

deTec4 Safety Light Curtain Receiver | Type 4 Safety | 30m Scanning Range | 1950mm Protective Field | by SICK
The deTec4 Safety Light Curtain Receiver is designed for industrial safety applications, featuring a Type 4 safety rating and a scanning range of 30 meters. With a protective field height of 1,950 mm and a resolution of 30 mm, it ensures reliable machine safeguarding and personnel protection. Built for durability and low power consumption, this light curtain is ideal for normal industrial environments, providing peace of mind in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTec4 Safety Light Curtain Receiver, SICK Safety Light Curtain, Industrial Safety Light Barrier
Technical Specifications
- Product version: deTec4
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 1,950 mm
- Response time: 14 ms (Uncoded), 25 ms (code 1 or code 2)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption typical: 3.96 W
- Output type: PNP semiconductor, short-circuit protected
- Output current per OSSD: ≤ 500 mA
- Application diagnostic output current: ≤ 100 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1950mm x 60mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 30 m
- Protective field height of 1,950 mm
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Beam coding and restart interlock features
- External device monitoring (EDM) and cascading capability
- Smart presence detection and 2-signal muting
- LED display elements with synchronization status indication
- Application diagnostic output (ADO), IO-Link, and NFC support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection in industrial settings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 3.96 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-EA19531C00 deTec4 Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine guarding applications.
