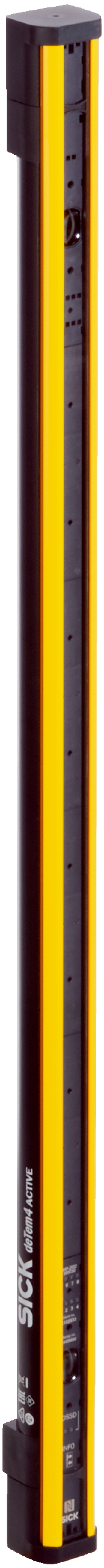

deTem4 A/P Safety Light Beam Sensor | 3.2m Scanning Range | Type 4 Safety | SIL 3 Certified | by SICK
The deTem4 A/P Safety Light Beam Sensor is designed for industrial safety monitoring, featuring a 3.2m scanning range with 2 beams and a 500mm beam separation. With a rapid response time of 20ms and compliance with Type 4 safety standards, this sensor is perfect for machine safeguarding and access control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 A/P Safety Light Beam Sensor, SICK Safety Light Curtain, Industrial Safety Sensor
Technical Specifications
- Product version: deTem4 A/P
- Functional principle: Active/passive
- Scanning range: 3.2 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.6 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: M12 male connector (5-pin or 8-pin)
- Extension connection: M12 female connector (5-pin) or none
- Configuration: DIP switch on system plug
- Display: LEDs with alignment aid
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 - 28.8 V DC)
- Power consumption: 4 W typical
- Output devices: 2 PNP semiconductors, short-circuit protected
- Current capacity per OSSD: ≤ 500 mA
- Application diagnostic output: PNP semiconductor, short-circuit protected
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 100mm x 31mm
- Weight: 0.55 kg
Key Features
- Active/passive functional principle
- Scanning range of 3.2 m with 2 beams and 500 mm beam separation
- Response time of 20 ms
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508) and Category 4 (ISO 13849-1)
- Performance level PL e (ISO 13849-1)
- Multiple function packages including muting and diagnostic outputs
- LED display elements with alignment aid
- IO-Link and Near Field Communication (NFC) enabled
- Protection class III (IEC 61140)
- Power consumption typical 4 W at 24 V DC
- Short-circuit protected PNP semiconductor outputs
- Housing made of aluminum extruded profile with polycarbonate scratch-resistant front screen
- Enclosure rating IP65 and IP67
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding
- Access control and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of 4 W reduces energy usage
- Long mission time of 20 years supports sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

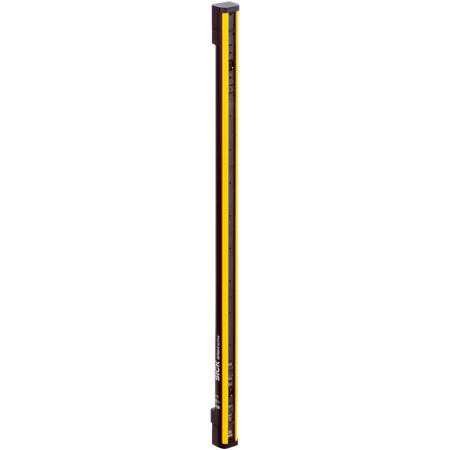

The SICK M4P-ZA02500C00 deTem4 A/P Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
