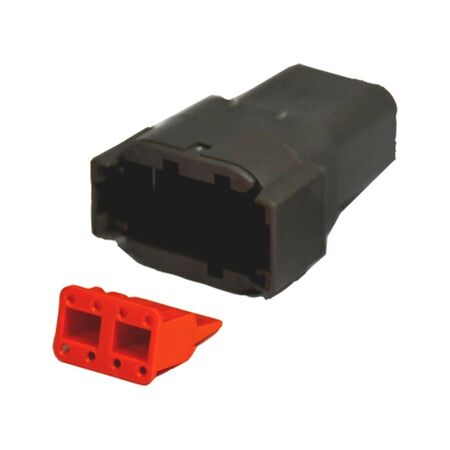

Deutsch DTM Series Connectors | IP67 Rated | 8 Contacts | Thermoplastic Material | by Wurth
Deutsch DTM Series Connectors are designed for reliable electrical connections in harsh environments, featuring 8 contacts and IP67 rating for superior protection against dust and moisture. Made from durable thermoplastic material, these connectors are ideal for OEM applications and industrial equipment wiring, ensuring long-lasting performance and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deutsch DTM Series Connectors | IP67 Rated | 8 Contacts | Thermoplastic Material | by Wurth
Brand: Wurth
SKU: 55520480
Alternatively Known As: DTM Connector Housing, Deutsch DTM Pin Housing, Deutsch DTM Socket Housing, Sealed Electrical Connector
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 8
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 7.5 A continuous
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections suitable for harsh conditions
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous current capacity
- Proven industry reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment wiring
- Harsh environment electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally sealed design prevents ingress of dust and moisture, enhancing durability and reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Deutsch DTM Series Connectors Pin and Socket Housing 1 PCS is available for immediate purchase, ideal for OEM and industrial electrical connection applications.
