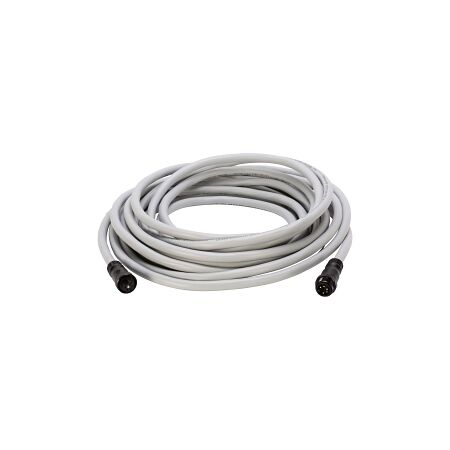

DeviceNet Cable 8m | 8A 300V | IP67 Rated | Thick Grey by NHP

BRAND: NHP
SKU: 1485CP8N5M5
$228.60 List price: $303.50
+
DeviceNet cable with 8A current and 300V voltage—ideal for industrial automation and control networks. Built for durability, with IP67 dust and water resistance and 8m length for flexible installation.

Product Name/Title: Allen-Bradley 1485 DeviceNet Cable Thick Grey Mini Male Mini Female 8m

Brand: NHP

SKU: 1485CP8N5M5

Alternatively Known As: DeviceNet Cable, Mini Male Mini Female Connector, Pre Wired Connection Cable

Technical Specifications
  • Rated Current: 8 A
  • Rated Voltage: 300 V
  • Number of Poles: 5
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Polyvinyl chloride (PVC)
  • Material of Contact Surface: Gold
  • Degree of Protection: IP67
  • AWG Size: 18
  • Cable Diameter: 12.2 mm
  • Cable Length: 8000 mm
  • Operating Temperature: -20-70 °C
  • Dimensions (H x L x W): 12.2mm x 8000mm x 12.2mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 8 A and voltage of 300 V.
  • IP67 protection rating for dust and water resistance.
  • Freely positionable mounting method.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Automation systems, control networks
  • Commercial: Building management systems, machinery connections
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 1485 DeviceNet Cable Thick Grey Mini Male Mini Female 8m is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

1485CP8N5M5-AU-DeviceNet-Cable-Datasheet.pdf (1485CP8N5M5-AU-DeviceNet-Cable-Datasheet.pdf, 390 Kb) [Download]
