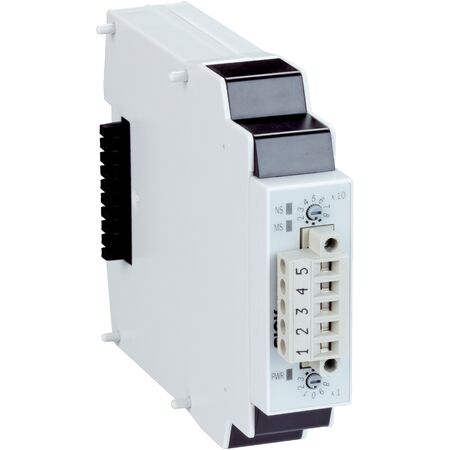

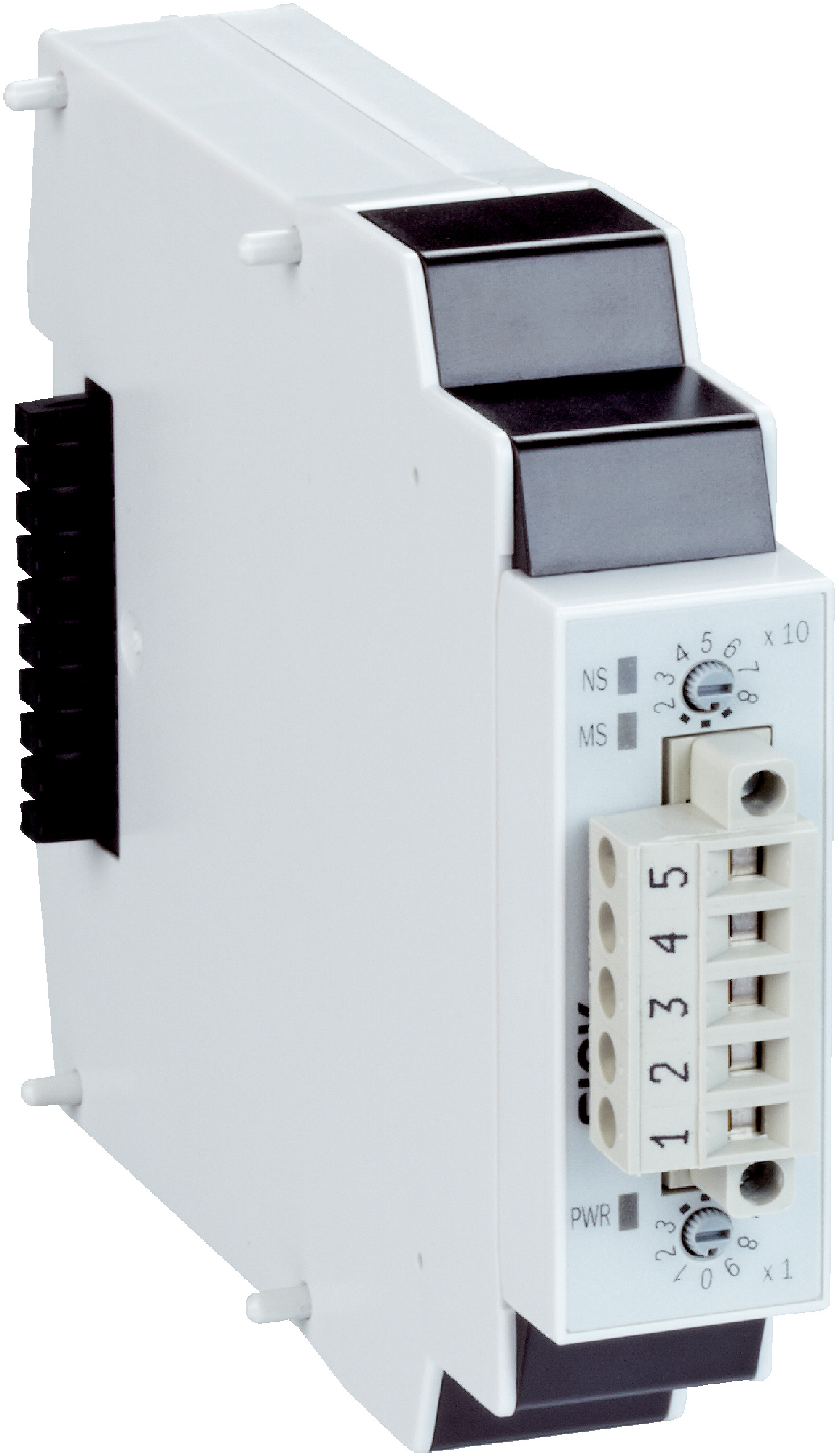

DeviceNet Gateway Module FX0-GDEV00000 | 500 kbit/s Data Rate | IP20 Enclosure | by SICK
The DeviceNet Gateway Module FX0-GDEV00000 is designed for seamless integration in industrial automation systems, featuring a data transmission rate of 500 kbit/s and configuration via Flexi Soft Designer software. With an IP20 enclosure rating and low power consumption, it's perfect for factory automation and reliable data transmission in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DeviceNet Gateway Module FX0-GDEV00000 | 500 kbit/s Data Rate | IP20 Enclosure | by SICK
Brand: SICK
SKU: 1044077
Alternatively Known As: DeviceNet Gateway Module, Industrial Network Gateway, SICK FX0 Gateway
Technical Specifications
- Module Type: Gateway
- Fieldbus Network: DeviceNet™
- Configuration Method: Via Flexi Soft Designer software
- Data Transmission Rate: 500 kbit/s
- Connection Type: 1 x female connector, Open Style, 5-pin
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 1.6 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 131mm x 23mm
- Weight: 0.15 kg
Key Features
- Gateway module for DeviceNet industrial network
- Configuration via Flexi Soft Designer software
- Data transmission rate of 500 kbit/s
- Connection via 1 x female 5-pin Open Style connector
- Protection class III (EN 61140)
- Voltage supply via FLEXBUS+
- Low internal power consumption ≤ 1.6 W
- IP20 enclosure rating suitable for industrial environments
- Operating temperature range from -25 °C to +55 °C
- Storage temperature range from -25 °C to +70 °C
- Supports up to 95% non-condensing humidity
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with DeviceNet networks and industrial electrical standards to ensure compliance and safety.
Applications
- Industrial automation systems requiring DeviceNet communication
- Factory automation for data transmission and control
- Integration with Flexi Soft Designer software for configuration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FX0-GDEV00000 DeviceNet Gateway Module is available for immediate purchase, ideal for industrial automation and network integration applications.
