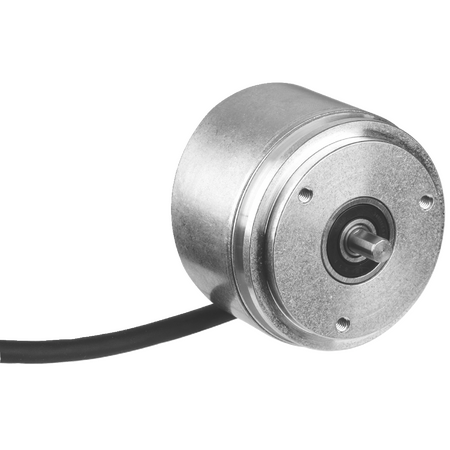

DFS60B-S1AK00600 | Incremental encoders
The SICK DFS60B-S1AK00600 is a high-performance incremental encoder with 600 pulses per revolution, designed for precise position and speed feedback in industrial automation applications. It features robust construction, IP67 protection, and reliable operation in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DFS60B-S1AK00600 | Incremental encoders
Brand: SICK
SKU: 1086906
Alternatively Known As: Incremental rotary encoder, rotary encoder 600 PPR, SICK DFS60 encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 600
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- 600 pulses per revolution for precise measurement
- Solid shaft with 6 mm diameter and flat
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing side and IP65 shaft side for robust protection
- Short-circuit protection on outputs
- Low start-up torque of 0.5 Ncm
- Cable connection with 8-wire universal 1.5 m cable
- Operating temperature range from -40 °C to +100 °C
- High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and electrical safety standards to ensure proper operation and compliance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with 4.5 to 5.5 V supply voltage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S1AK00600 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
