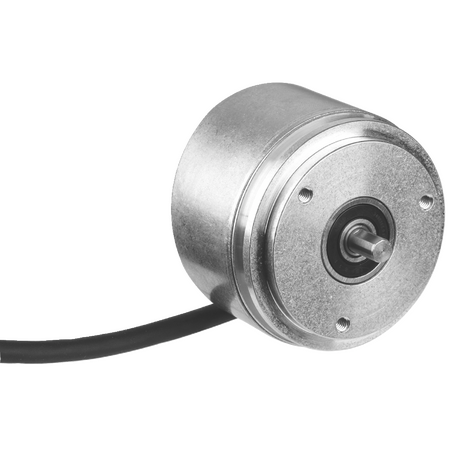

DFS60E-S1AK00200 | Incremental encoders

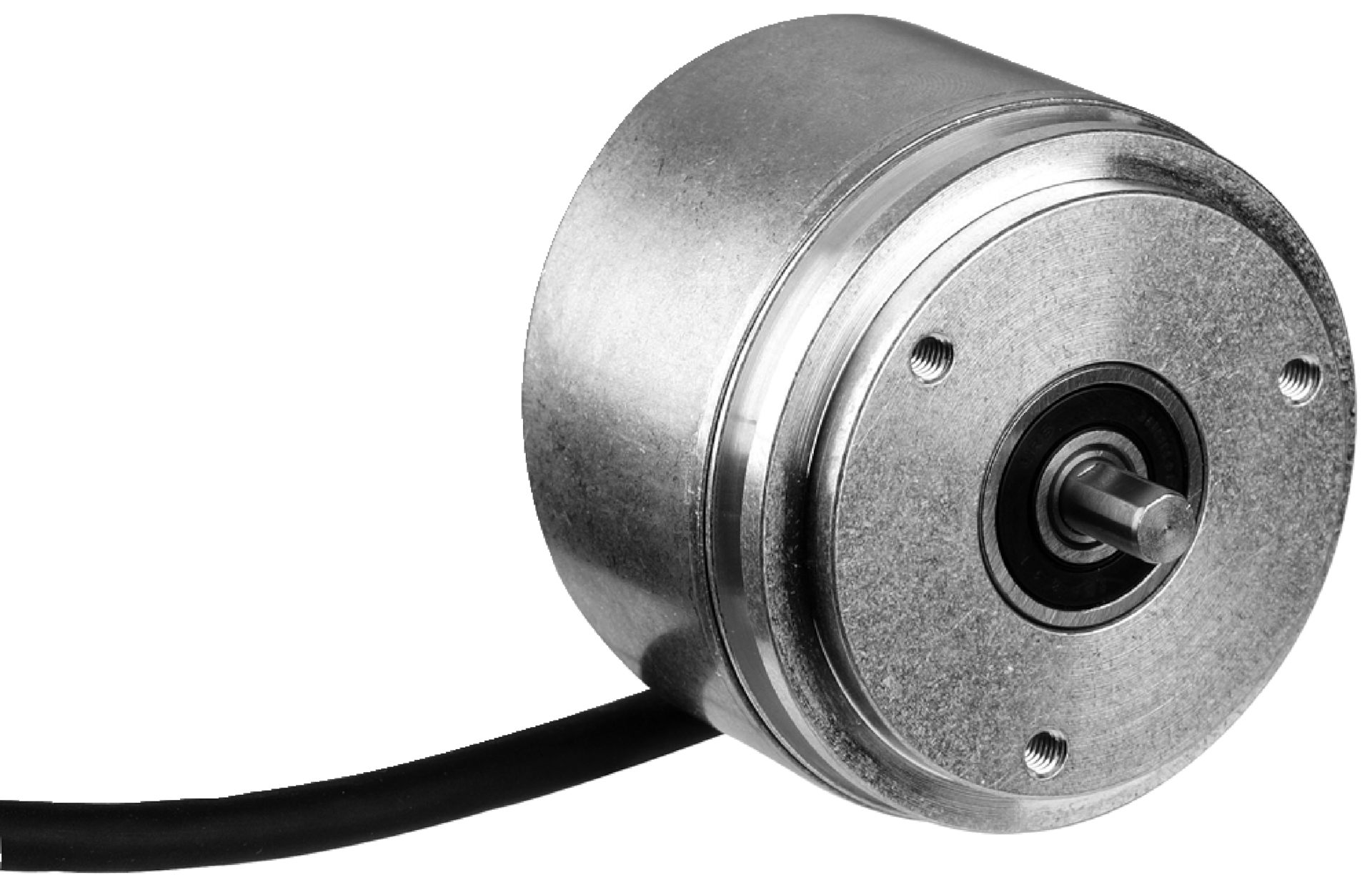

The SICK DFS60E-S1AK00200 is a high-performance incremental encoder designed for precise industrial position and speed measurement with robust construction and reliable signal output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DFS60E-S1AK00200 | Incremental encoders
Brand: SICK
SKU: 1066775
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 200
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.2°
- Error limits: ±0.3°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start-up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side and cable, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 200 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Solid shaft with 6 mm diameter and 10 mm length
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing side and cable connection, IP65 shaft side
- Robust aluminum die cast housing and stainless steel shaft
- Short-circuit protection on outputs
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- High bearing lifetime of 3.6 x 10^10 revolutions
- Operating temperature range from 0 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption electronics for energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-S1AK00200 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
