DFS60E-TEAA02000 Incremental encoders

BRAND: SICK
SKU: 1075696
$832.20 List price: $1,045.90
+ −
30 Days Return Electricians Unlock Trade Access

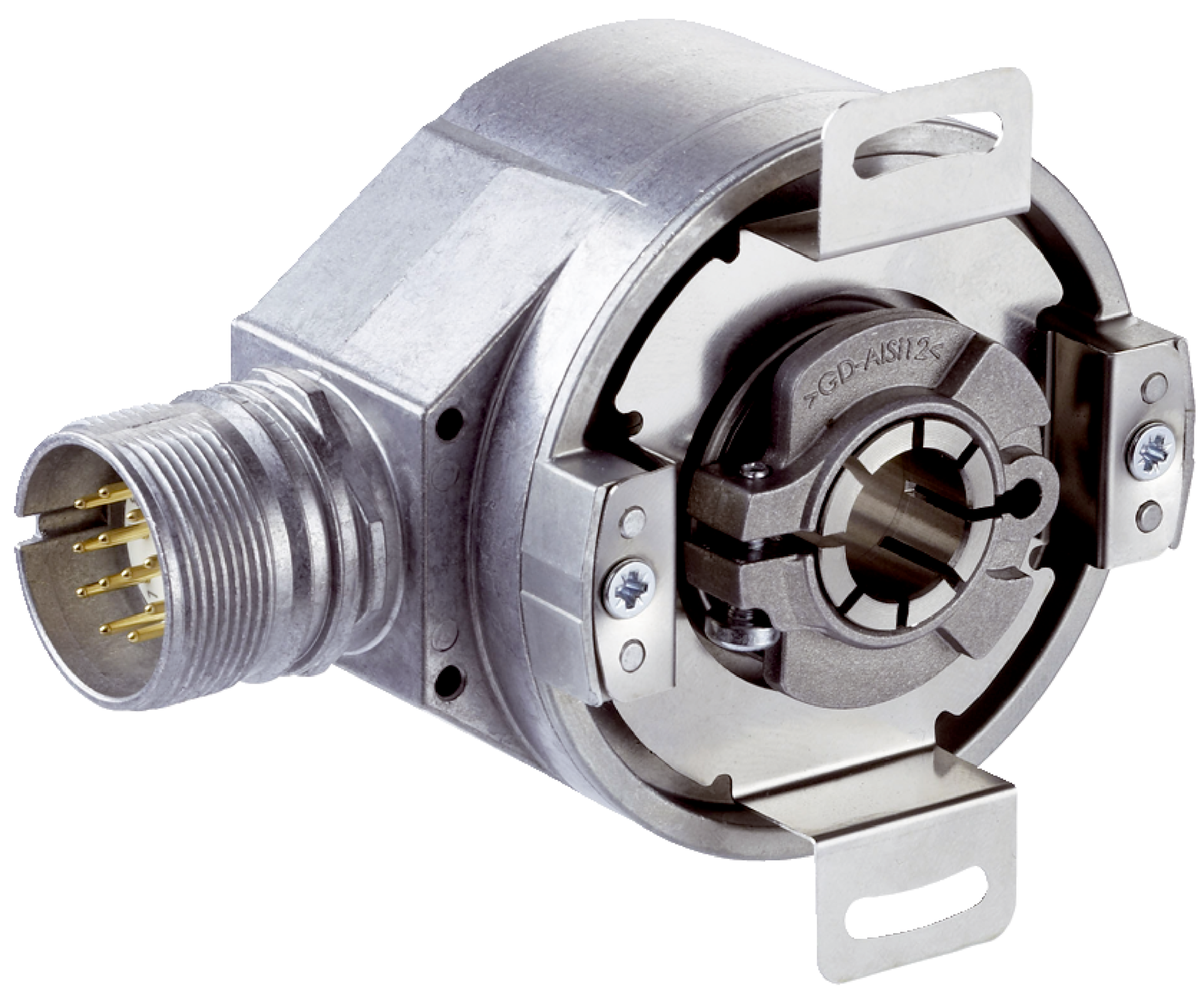

The SICK DFS60E-TEAA02000 is a high-performance incremental encoder featuring 2,000 pulses per revolution, robust aluminum housing, and IP65 protection

Product Name/Title: DFS60E-TEAA02000 | Incremental encoders

Brand: SICK

SKU: 1075696

Alternatively Known As: Incremental rotary encoder, rotary shaft encoder, industrial encoder, position encoder, SICK DFS60 encoder

Technical Specifications
  • Pulses per revolution: 2,000
  • Measuring step: 90° electric / pulses per revolution
  • Measuring step deviation: ±0.2°
  • Error limits: ±0.3°
  • Communication interface: Incremental TTL / RS-422
  • Number of signal channels: 6
  • Initialization time: 40 ms
  • Output frequency: ≤ 300 kHz
  • Load current: ≤ 30 mA
  • Operating current: 40 mA (without load)
  • Connection type: Male connector, M23, 12-pin, radial
  • Supply voltage: 4.5 to 5.5 V
  • Reference signal: 1, positioned at 90°, logically gated with A and B
  • Short-circuit protection: Yes
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 12 mm front clamp
  • Shaft material: Stainless steel
  • Flange material: Aluminum
  • Housing material: Aluminum die cast
  • Start-up torque: 0.8 Ncm at +20°C
  • Operating torque: 0.6 Ncm at +20°C
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: ≤ 6,000 min⁻¹
  • Moment of inertia of rotor: 40 gcm²
  • Bearing lifetime: 3.6 x 10^10 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 (housing and shaft side)
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: 0°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 50 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 100mm x 60mm
  • Weight: 0.2 kg
Key Features
  • High resolution with 2,000 pulses per revolution
  • Through hollow shaft design with 12 mm diameter
  • Robust aluminum die cast housing and flange
  • IP65 rated enclosure for dust and water protection
  • Short-circuit protected outputs
  • Operating temperature range from 0°C to +85°C
  • Low start-up torque of 0.8 Ncm
  • TTL / RS-422 incremental communication interface
  • 6 signal channels with 40 mA operating current
  • High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety compliance.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Conveyor and material handling systems
  • Machine tool positioning and feedback
  • Safety-related monitoring in machinery
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK DFS60E-TEAA02000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
