DFS60E-THAA02000 | Incremental encoders

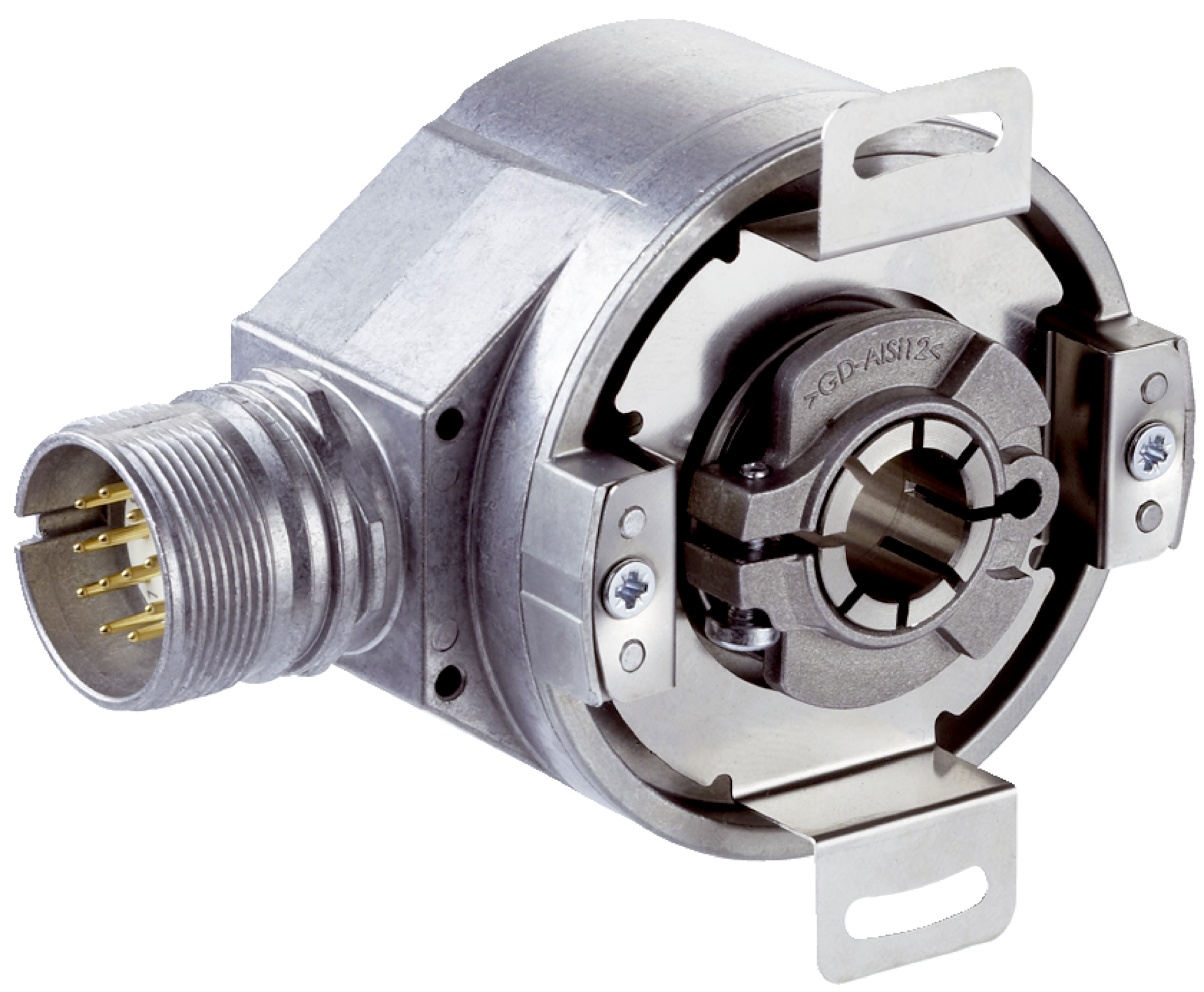

The SICK DFS60E-THAA02000 is a high-performance incremental encoder featuring 2,000 pulses per revolution, robust aluminum housing, and IP65 protection, ideal for precise industrial motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DFS60E-THAA02000 | Incremental encoders
Brand: SICK
SKU: 1051959
Alternatively Known As: Incremental rotary encoder, rotary encoder 2000 PPR, hollow shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.2°
- Error limits: ±0.3°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Through hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum die cast housing and flange
- IP65 rated enclosure for protection against dust and water
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit protected outputs
- Operating temperature range from 0 °C to +85 °C
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
- High bearing lifetime of 3.6 x 10^10 revolutions
- Fast initialization time of 40 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-THAA02000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
