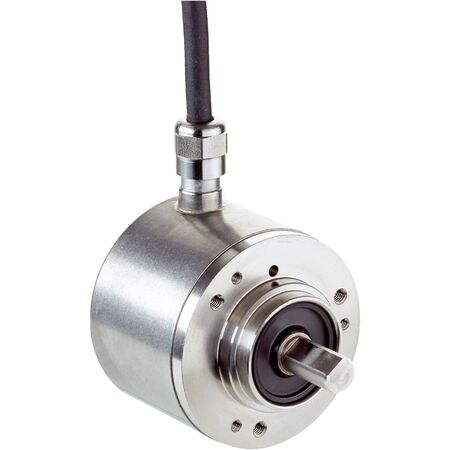

Product Name/Title: DFS60I-S4AL02550 | Incremental encoders
Brand: SICK
SKU: 1154513
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2,550
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 3 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
