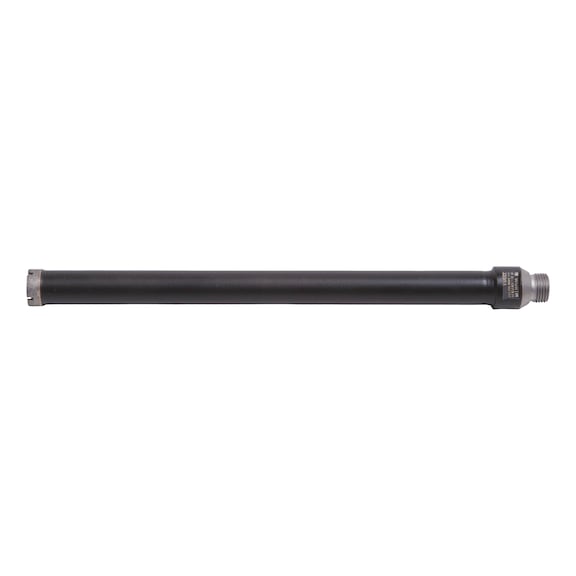

Diamond Core Drill Bit 24mm | Fast Drilling Speed | Long Service Life | by Wurth
The Diamond Core Drill Bit 24mm is engineered for extreme efficiency, featuring a fast drilling speed even in iron reinforcements and an extra-long service life. Ideal for construction trades, this bit excels in drilling through concrete and various materials, ensuring optimal performance and reduced resistance. Designed for professional use, it meets AS/NZS 1170 standards for structural design actions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Core Drill Bit 24mm | Fast Drilling Speed | Long Service Life | by Wurth
Brand: Wurth
SKU: 5456060024
Alternatively Known As: Diamond Core Drill Bit, Wet Core Drill Bit, Concrete Core Bit, Diamond Hole Saw
Technical Specifications
- Diameter: 24 mm
- Working length: 300 mm
- Total length: 355 mm
- Segment height: 9 mm
- Segment thickness: 2.2 mm
- Number of segments: 1 PCS
- Design: Ring
- Segment connection: HFI
- Connection thread: ET 1/2 inch
- Versatility rating: 3 of 4 points
- Service life rating: 4 of 4 points
- Drilling speed in concrete: 4 of 4 points
- Drilling speed in armouring: 4 of 4 points
- Dimensions (H x L x W): 9mm x 355mm x 24mm
- Weight: 0.5 kg
Key Features
- Extremely fast drilling speed even in iron reinforcements
- Extra-long service life
- Viscoplastic yet high-strength segment connection
- Suitable for almost all construction materials
- Less resistance in the material
Professional Installation Requirements
- Should be used by trained professionals with appropriate drilling equipment for safety and optimal performance.
Applications
- Construction trades requiring drilling in concrete, iron reinforcements, and various construction materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Efficient drilling reduces energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth High-Tech Diamond Wet Core Bit 24mm is available now for immediate purchase. Ideal for professional construction and machining applications.
