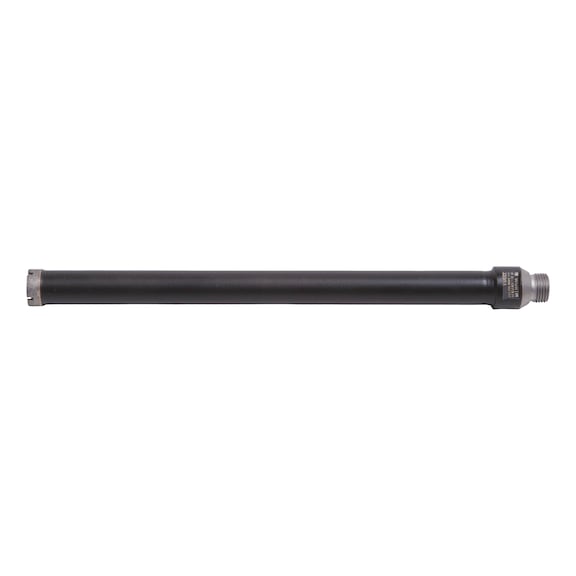

Diamond Core Drill Bit 32mm | Extremely Fast Drilling Speed | Extra-Long Service Life | by Wurth
The Diamond Core Drill Bit 32mm is designed for professional construction and machining tasks, offering extremely fast drilling speeds even in concrete and iron reinforcements. With a high-strength segment connection and a long service life, this core bit is perfect for various construction materials, ensuring efficient drilling with less resistance. Ideal for trained personnel seeking optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Core Drill Bit 32mm | Extremely Fast Drilling Speed | Extra-Long Service Life | by Wurth
Brand: Wurth
SKU: 5456060032
Alternatively Known As: Diamond Core Drill Bit, Wet Core Drill Bit, Diamond Hole Saw, Concrete Core Bit
Technical Specifications
- Diameter: 32 mm
- Working length: 300 mm
- Total length: 355 mm
- Segment height: 9 mm
- Segment thickness: 2.2 mm
- Number of segments: 1 PCS
- Design: Ring
- Segment connection: HFI
- Connection thread: ET 1/2 inch
- Versatility rating: 3 of 4 points
- Service life rating: 4 of 4 points
- Drilling speed in concrete: 4 of 4 points
- Drilling speed in armouring: 4 of 4 points
- Dimensions (H x L x W): 9mm x 355mm x 32mm
- Weight: 0.5 kg
Key Features
- Extremely fast drilling speed even in iron reinforcements
- Extra-long service life for extended use
- Viscoplastic yet high-strength segment connection
- Suitable as a single core bit for almost all construction materials
- Less resistance in the material for efficient drilling
Professional Installation Requirements
- Professional installation and use by trained personnel is recommended to ensure safety and optimal performance.
Applications
- Construction trades requiring drilling in concrete and iron reinforcements
- General machining and drilling tasks in various construction materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Efficient drilling reduces energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth High-Tech Diamond Wet Core Bit 32mm is available now for immediate purchase. Ideal for professional construction and machining applications.
