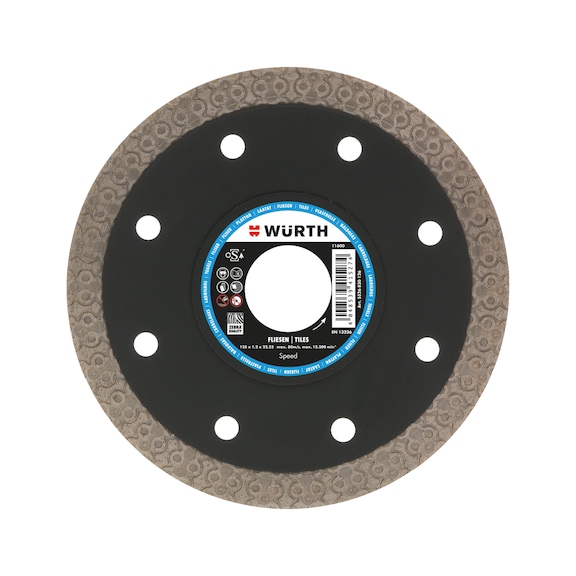

Diamond Cutting Blade 125mm | Closed Edge Design | Sintered Segments | by Wurth
The Diamond Cutting Blade 125mm is engineered for precision cutting in machining and construction. Featuring a closed edge design for quick, clean cuts and optimal performance with diamond segments, this blade ensures reduced steering forces for easier handling. Ideal for use with angle grinders on metal, stone, and concrete, it offers an extended service life, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Cutting Blade 125mm | Closed Edge Design | Sintered Segments | by Wurth
Brand: Wurth
SKU: 5526830126
Alternatively Known As: Diamond Cutting Blade, Diamond Saw Blade, Angle Grinder Cutting Disc, Sintered Diamond Disc
Technical Specifications
- Diameter: 125 mm
- Bore hole: 22.23 mm
- Segment height: 10 mm
- Segment thickness: 1.4 mm
- Segment connection: Sintered
- Max rotation speed: 12200 rpm
- Max circumferential speed: 80 m/s
- Versatility rating: 3 of 4 points
- Service life rating: 3 of 4 points
- Cutting speed rating: 4 of 4 points
- Cut quality rating: 3 of 4 points
- Dimensions (H x L x W): 10mm x 125mm x 125mm
- Weight: 0.2 kg
Key Features
- Closed edge design for quick and clean cuts
- Optimal cutting performance with diamond segments
- Extended service life with proper use and maintenance
- Reduced steering forces for easier handling
- Sintered segment connection for durability
- Max rotation speed of 12200 rpm and max circumferential speed of 80 m/s
- Segment height of 10 mm and thickness of 1.4 mm
- Bore hole diameter of 22.23 mm
Professional Installation Requirements
- Clamping and installation must be performed by a trained specialist using clean clamping flanges of the same size. A test run is recommended to ensure safety.
Applications
- Cutting of larger workpiece cross-sections in machining and construction
- Straight cutting tasks requiring precision and reduced steering forces
- Use with angle grinders for metal, stone, and concrete cutting
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances and tools
Environmental Benefits
- Extended service life reduces waste and frequency of disc replacement
- Efficient cutting reduces energy consumption during use
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth 125mm Diamond Cutting Disc is available for immediate purchase, ideal for machining and construction cutting applications.
