Diamond Cutting Disc 125mm | Sintered Segments | Max 12250 RPM | by Wurth

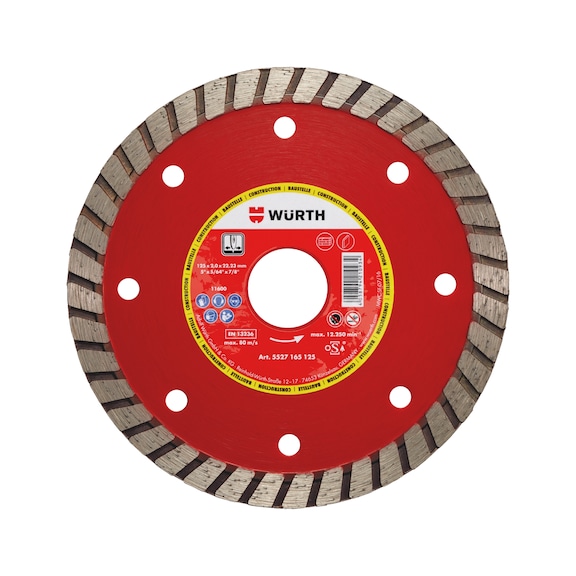

The Diamond Cutting Disc 125mm is engineered for precision straight cuts in construction tasks. With sintered segments and a maximum rotation speed of 12250 RPM, this disc ensures efficient cutting without the need for excessive pressure. Ideal for professionals, it offers a long service life and complies with safety standards, making it a reliable choice for various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Cutting Disc 125mm | Sintered Segments | Max 12250 RPM | by Wurth
Brand: Wurth
SKU: 5527165125
Alternatively Known As: Diamond Cutting Blade, Diamond Saw Disc, Construction Cutting Disc, Wurth Cutting Disc 125mm
Technical Specifications
- Diameter: 125 mm
- Bore hole diameter: 22.23 mm
- Segment height: 10 mm
- Segment thickness: 2.0 mm
- Segment connection: Sintered
- Max rotation speed: 12250 rpm
- Max circumferential speed: 80 m/s
- Versatility rating: 3 of 4 points
- Service life rating: 2 of 4 points
- Cutting speed rating: 2 of 4 points
- Cut quality rating: 3 of 4 points
- Dimensions (H x L x W): 10mm x 125mm x 125mm
- Weight: 0.2 kg
Key Features
- Highly versatile and cost-effective for construction use
- Designed for straight cutting only to avoid blade deformation
- Requires no pressure during cutting; machine weight is sufficient
- Must be clamped by trained specialists using clean flanges
- Safety precautions include wearing protective goggles and clothing
- Max rotation speed of 12250 rpm and max circumferential speed of 80 m/s
Professional Installation Requirements
- Clamping and installation must be performed by trained specialists to ensure safety and proper function.
Applications
- Construction site cutting tasks
- Straight cutting of various materials
- Cutting larger workpiece cross-sections in sections
Standards & Compliance
- Complies with AS/NZS 60335 for safety of power tools and accessories
Environmental Benefits
- Long service life reduces waste and frequency of replacements
- Efficient cutting reduces energy consumption during use
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth Diamond Cutting Disc CUTDISC-DIA-CNST-T-BR22,23-D125MM is available for immediate purchase, ideal for construction and machining applications requiring precise straight cuts.
