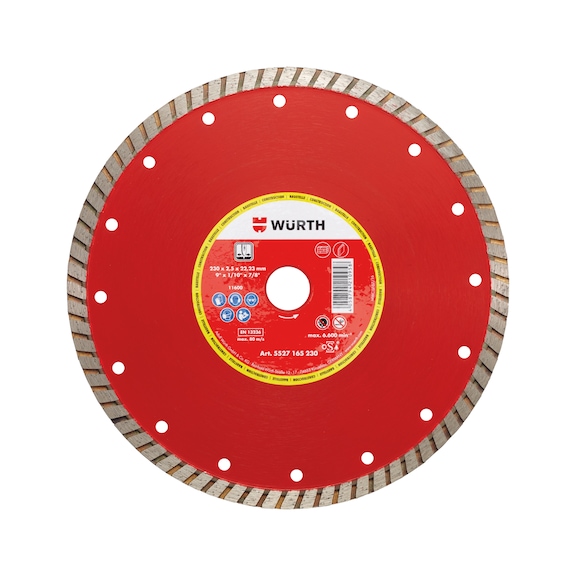

Diamond Cutting Disc 230mm | Sintered Segments | 6600 RPM Max Speed | by Wurth
The Diamond Cutting Disc 230mm is engineered for precision straight cuts in concrete and masonry. With sintered segments and a maximum rotation speed of 6600 RPM, this disc is perfect for construction site tasks, ensuring efficiency and safety. Designed for trained specialists, it requires no applied pressure, making it a reliable choice for heavy-duty applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Cutting Disc 230mm | Sintered Segments | 6600 RPM Max Speed | by Wurth
Brand: Wurth
SKU: 5527165230
Alternatively Known As: Diamond Cutting Blade, Diamond Saw Disc, Concrete Cutting Disc, Masonry Cutting Disc
Technical Specifications
- Diameter: 230 mm
- Bore hole diameter: 22.23 mm
- Segment height: 10 mm
- Segment thickness: 2.5 mm
- Segment connection: Sintered
- Max rotation speed: 6600 rpm
- Max circumferential speed: 80 m/s
- Versatility rating: 3 of 4 points
- Service life rating: 2 of 4 points
- Cutting speed rating: 2 of 4 points
- Cut quality rating: 3 of 4 points
- Dimensions (H x L x W): 10mm x 230mm x 230mm
- Weight: 0.5 kg
Key Features
- Highly versatile and cost-effective for construction site use
- Designed for straight cutting only to avoid blade deformation and safety risks
- Requires no applied pressure; machine weight is sufficient for cutting
- Must be used with appropriate protective guard and safety equipment
- Clamping must be performed by trained specialists to ensure safety
- Max rotation speed of 6600 rpm and max circumferential speed of 80 m/s
Professional Installation Requirements
- Clamping and installation must be performed only by trained specialists to ensure safety and proper operation.
Applications
- Construction site cutting tasks
- Straight cutting of larger workpiece cross-sections
- Use with compatible cutting machines for concrete, masonry, and similar materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and frequency of disc replacement
- Efficient cutting reduces energy consumption during operation
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth Diamond Cutting Disc CUTDISC-DIA-CNST-T-BR22,23-D230MM is available for immediate purchase, ideal for construction and machining applications requiring precise straight cuts.
