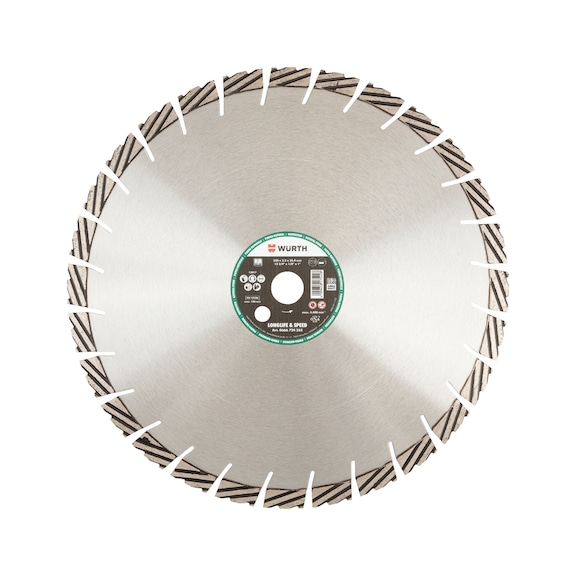

Diamond Cutting Disc 350mm | Innovative Noise Reduction | Laser-Segment Connection | by Wurth
The Diamond Cutting Disc 350mm is engineered for high-efficiency cutting of natural stone materials. Featuring an innovative cascading segment design that reduces noise by up to 15 dB, this disc ensures consistent cutting performance and an extremely long service life. Ideal for professional machining and construction tasks, it is designed for use with power tools requiring a 30 mm bore cutting disc.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Cutting Disc 350mm | Innovative Noise Reduction | Laser-Segment Connection | by Wurth
Brand: Wurth
SKU: 666724353
Alternatively Known As: Diamond Blade, Stone Cutting Disc, Masonry Cutting Disc, Circular Cutting Disc
Technical Specifications
- Diameter: 350 mm
- Bore hole: 30 mm
- Reducing-ring internal diameter: 25.4 mm
- Segment height: 15 mm
- Segment thickness: 3.2 mm
- Number of segments: 28 PCS
- Segment connection: Laser
- Max. rotation speed: 5400 rpm
- Max. circumferential speed: 100 m/s
- Versatility: 3 of 4 points
- Service life: 4 of 4 points
- Cutting speed: 4 of 4 points
- Cut quality: 3 of 4 points
- Complies with EN standard 13236
- Dimensions (H x L x W): 15mm x 350mm x 350mm
- Weight: 1.5 kg
Key Features
- Innovative cascading segment design with special milled recesses for noise reduction up to 15 dB
- 30/25.4 mm bore design with sandwich carrier and integrated copper film for noise reduction
- Consistent cutting performance with recommendations for resharpening and safe use
- Extremely long service life with optimal cutting speed and pressure guidelines
- Laser-segment connection for durability
- Designed for straight cutting only, not for side grinding
Professional Installation Requirements
- Clamping must be performed only by a trained specialist using clamping flanges of the same size. A test run is recommended. Use of safety goggles and protective clothing is mandatory.
Applications
- Cutting natural stone materials with high efficiency
- Suitable for professional machining and construction tasks
- Ideal for use with power tools requiring a 30 mm bore cutting disc
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Noise reduction design minimizes environmental noise pollution
- Long service life reduces waste and frequency of replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Diamond Cutting Disc 350mm is available now for immediate purchase. Ideal for professional natural stone cutting applications.
